Description
John Deere 5130ML
Specifications
Manufacturer
John Deere
Model
5130ML
Year
2026
Category
Tractors
Subcategory
Tractors
Description
OOS: John Deere PowerTech™ 4045 PWL,Cab: John Deere PowerTech™ 4045 PWS
Engine type
4045HLV81
Rated speed
2200 rpm
Aspiration
Turbocharged
Cylinders liners
Wet sleeved
Emission level
Final Tier 4
After treatment type
OOS: ERG/DOC/SCR,Cab: EGR/DOC/DPF/SCR
Displacement
4 cylinders: 4.5 L, 276 cu in
Rated power
At 2200 rpm: 95.8 kW,130 hp
Rated PTO power (hp SAE)
At 2100 rpm: 84.5 kW,115 hp
Power boost
At 1900 rpm: 4 percent
Maximum engine power
99.7 kW,135.5 hp
Engine peak torque
At 1600 rpm: 541 Nm,399 lb-ft
PTO torque rise
At 1600 rpm: 30 percent
Clutch; wet/dry
Wet
Creeper
Cab: Powr8™ 32F/16R with creeper
Hitch draft control load sense type
Electrohydraulic
Remote control valves available
Three
Hitch category (SAE designation)
Category 2; convertible to 1
Sensing type
Top link
Rear axle differential lock
Electrohydraulic
Drawbar category
Category 2
Maximum vertical load
Road/field use (250-mm extended): 1450 kg,3197 lb,Field use (350-mm extended): 1200 kg,2646 lb,Field use (400-mm extended): 1200 kg
Type
Standard: 540/540E/1000
Engine rpm (at rated PTO speeds)
540 at 2100 rpm,540E at 1645 rpm,1000 at 2100 rpm
PTO actuation
Electrohydraulic
Category
Cab: Category 2
Standard lift capacity
Cab: 1780 kg (3924 lbs)
Front power take-off (PTO)
Cab: 1000 rpm (21 spline) 34.9 mm (1.375 in)
PTO speed
Cab: 1000 at 2200 rpm
Type,One
Flange
Final drive type
Inboard planetary
Differential controls
Electrohydraulic
Brakes, type and control
Hydraulic wet disc
Type,Two
Mechanical Front Wheel Drive (MFWD)
Rear
19.5L-24 in R4 Bias
Wheel tread range
Front: 1299-1997 mm,51.1-78.6 in
Turning radius with brakes
3.34 m,11.0 ft
Turning radius without brakes
3.8 m,12.5 ft
Alternator size
OOS: 90 amp,Cab: Standard: 120 amp,ISOBUS/GreenStar™ Ready: 200 amp
Battery options
12 V
Type of bulb in beacon (Halogen, Zenon, LED)
Kit: LED
Rollover protective structure, OOS
Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Flat Gearshift location - console/floor Floor
Seat
OOS: Low Profile Cab: Air Ride
Display

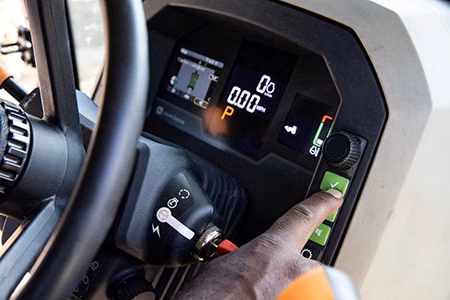

OOS: Automotive style light-emitting LED instrument cluster, Cab: Digital Dash Display with three liquid crystal displays (LCDs)
Inner cab volume
55 cu ft
dB(A) rating
80 dBA
Safety glass rating
Tempered per SAE J673 and ECE R43-01 requirements
Approximate shipping weight, Open;Cab
OOS: 4209 kg 9280 lb,Cab: 4826 kg 10640 lb
Fuel tank
144 L,38 US gal
Diesel exhaust fluid (DEF) tank
12 L, 3.17 US gal
Guidance
Optional: AutoTrac™ with AutoTrac Basic
Telematic
JDLink™ Modem
Country of manufacture
Saltillo, Mexico
Date collected
6-Jan-2024
