Description

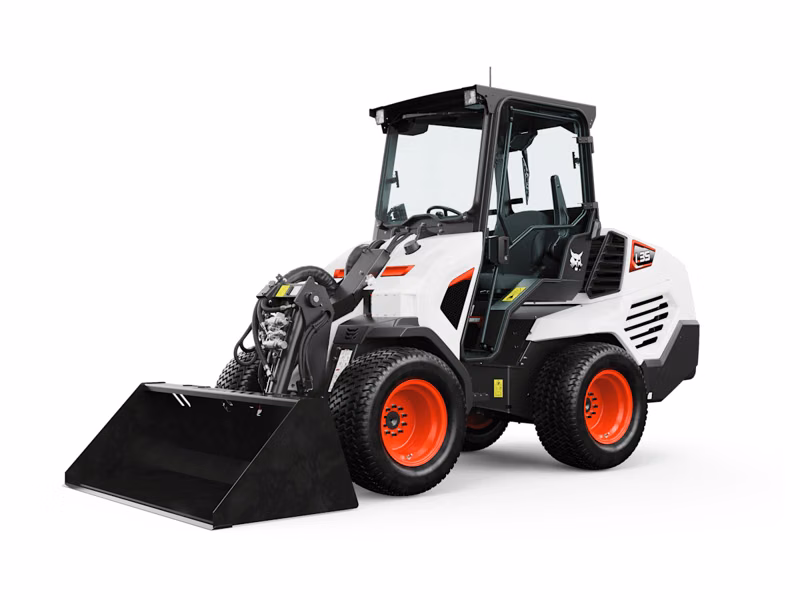

L35 Small Articulated Loader The Bobcat® L35 small articulated loader combines agility with added power to tackle heavier lifting, loading and attachment work – all while keeping a light footprint. With higher rated operating capacity, powerful hydraulics and enhanced comfort features, the L35 is engineered to handle demanding jobs with confidence.
Specifications
Manufacturer
Bobcat
Model
L35
Year
2026
Category
Loaders
Subcategory
Small Articulated Loaders
Horsepower
57 hp
Fuel Tank
13.5 gal
Width (over tires)
52.4 in
Height to Bucket Hinge Pin - Extended
114.8 in
Height to Bucket Hinge Pin - Retracted
88.2 in
Inside Turning Radius
92.8 in
Outside Turning Radius
111.2 in
Length
148.5 in
Length without Attachment
110.9 in
Length with Standard Bucket
148.5 in
Width (with bucket)
54 in
Height with Operator Cab
82.2 in
Reach @ Maximum Height
38.6 in
Ground Clearance
6.5 in
Wheelbase
57.2 in
Wheel Tread
40.3 in
Rated Operating Capacity (ISO) (Straight)
2072 lbs
Rated Operating Capacity (ISO) (Articulated)
1695 lbs
Operating Weight
6012 lbs
Lift Breakout Force (ISO)
4000 lbf
Auxiliary Std Flow
18 gpm
Travel Speed
16.2 mph
System Relief @ Quick Couplers
3045 psi
Auxiliary High Flow
25.3 gpm
Auxiliary Hydraulics Type
Finger Tip Control
Main Drive
Hydrostatic pump driving 4 independent wheel motors
Tires-Ply Rating
10
Articulation Angle
43 deg
Dump Angle @ Maximum Height
40 deg
Rollback Angle
32 deg
Tire Size
26X12-12 10 PLY
