Description
John Deere 2430C
Specifications
Manufacturer
John Deere
Model
2430C
Year
2026
Category
Tiller Implements
Subcategory
Tillage
Engine horsepower requirement 19 row
268.5 to 387.8 kW 360 to 520 hp 25 row: 372.8 to 462.3 kW 500 to 620 hp
Number of rows
19, 25
Fold type
Five-section fold
Coulter down force
2669 N 600 lbf
Number of standards
19, 25
Standard trip force
5560 N 1250 lbf

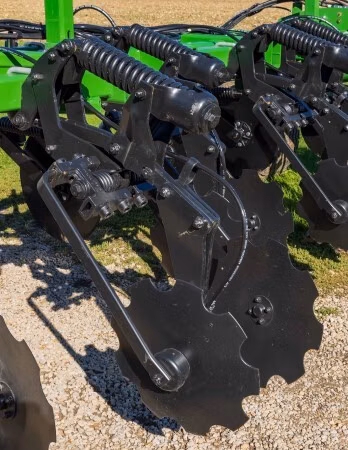

Blade type
Concave notched
Mounting
Independently mounted arms with pin adjustment
Max down pressure
222 N 50 lbf
Frame flex
10 degrees up / 15 degrees down
Hitch link
Category 4 or 5

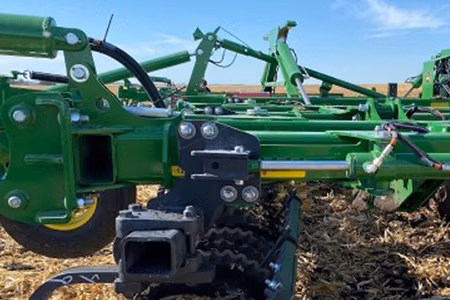

Rear hitch
Fore/aft and side-to-side adjustable drawbar
Rear hitch maximum gross vehicle weight (GVW)
11,300 kg 25,000 lb
Wheel mounting
Castering front with walk-over tandem rear
Tire Configuration - 19 Row
Mainframe tires: 320/70R15 I45D (six) | Inner wing tires: 320/70R15 I45D (two), 280/70R15 I34D (four) | Outer wing tires: 280/70R15 I34D (six)
Tire Configuration - 25 Row
Mainframe tires: 320/70R15 I45D (six) | Inner wing tires: 320/70R15 I45D (six) | Outer wing tires: 500/40R16 I53A8/B (two)
Operating speed
8 to 16 km/h 5 to 10 mph
Selective control valves (SCVs) required
Two

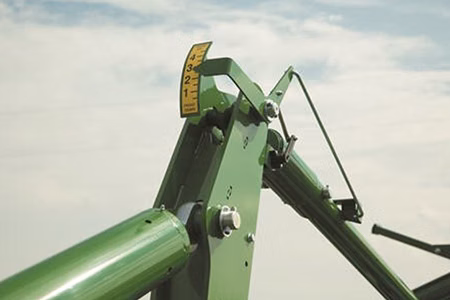

Depth control system
TruSet depth control system and single-point depth control system
Machine weight - conventional 19 row, with optional closing disks and coulters
11939 kg [26320 lb]
Machine weight - conventional 25 row, with optional closing disks and coulters
13608 kg [30000 lb]
Working widths 19 row
14.5 m 47.5 ft 25 row: 19.1 m 62.5 ft
Transport width 19 row
6 m 19 ft, 8 in 25 row: 5.5 m 18 ft, 2 in
Transport height 19 row
4.3 m 14 ft, 1 in 25 row: 4.3 m 14 ft
Overall length
9.75 m 32 ft
Centerframe width 19 row and 25 row
3.66 m 12 ft
Row spacing
762 mm 30 in
Fore-and-aft clearance
3.4 m 134 in
Underframe clearance Fully raised
1100 mm 44 in
Blade diameter
560 x 4.5 mm 22 x 0.177 in
Blade spacing
762 mm 30 in
Standard spacing
762 mm 30 in
Standard Operating depth range
76 to 305 mm 3 to 12 in
Standard trip height
280 mm 11 in
Disk blade diameter
460 x 3 mm 18 x 0.118 in
Side to side adjustment range
220 to 460 mm 8.8 to 17 in
Trip height
465 mm 19.5 in
Hitch system Pull type
Floating hitch Rigid T-hitch - 6 x 12 in 152 x 305 mm
