Description

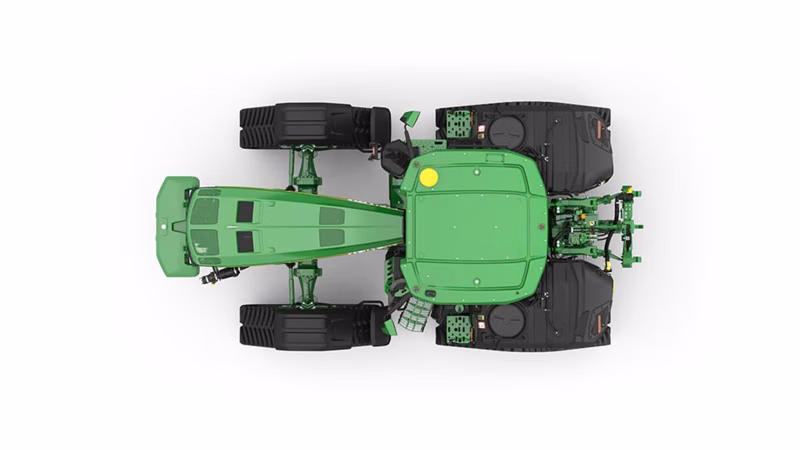

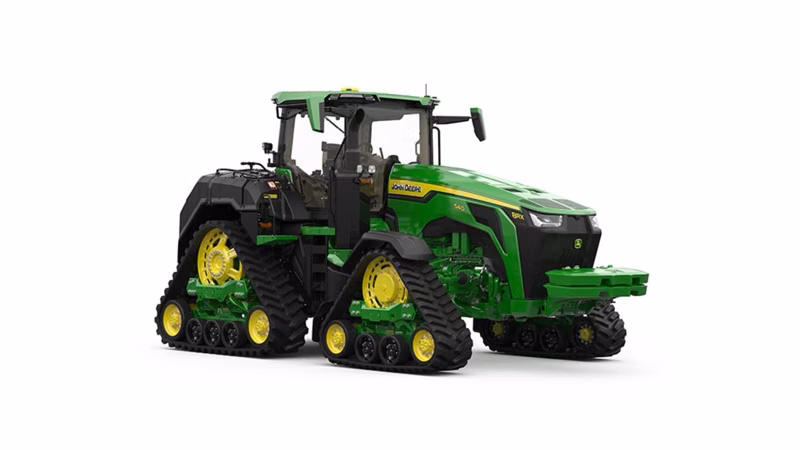

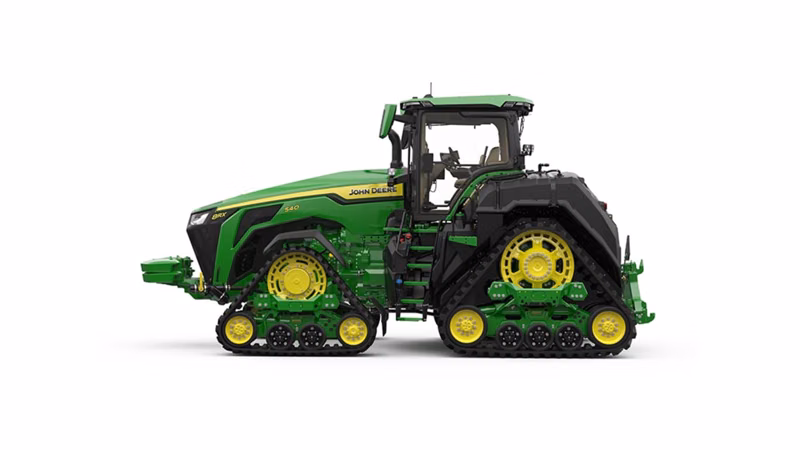

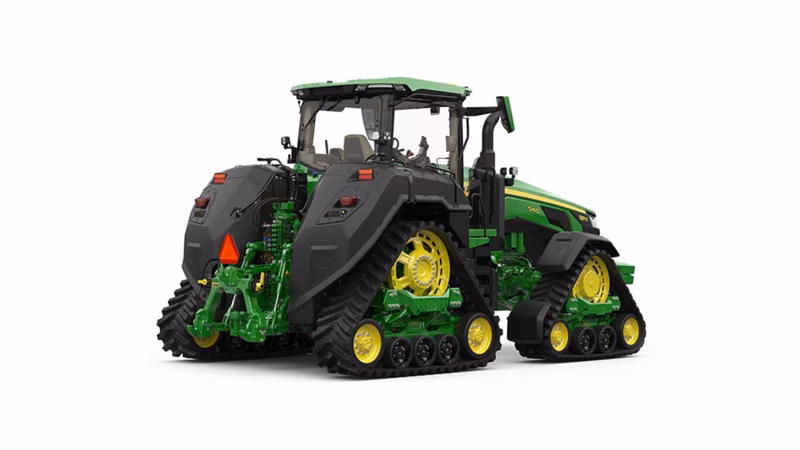

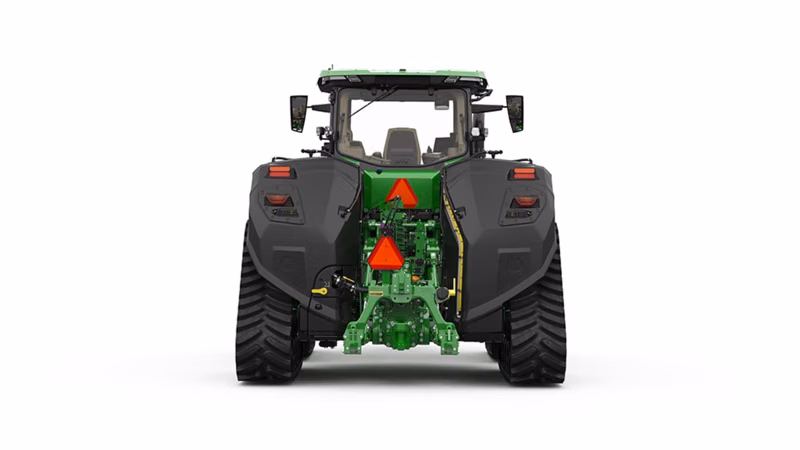

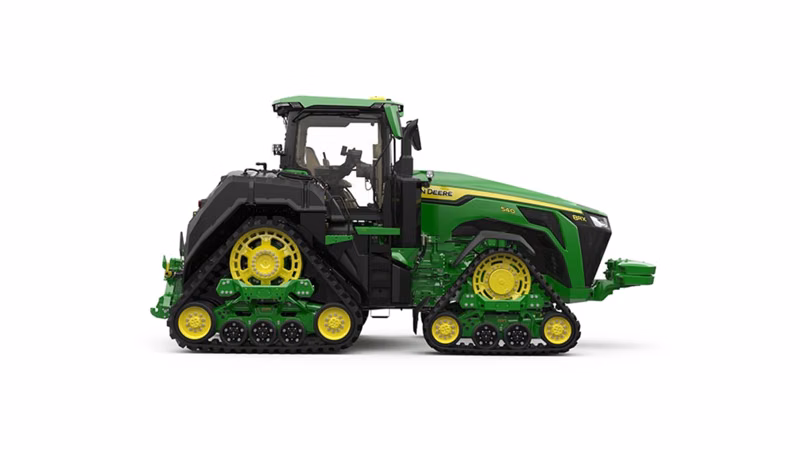

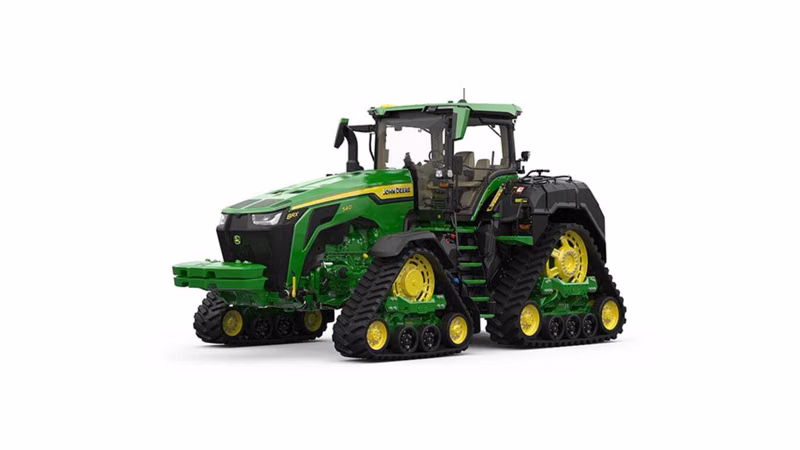

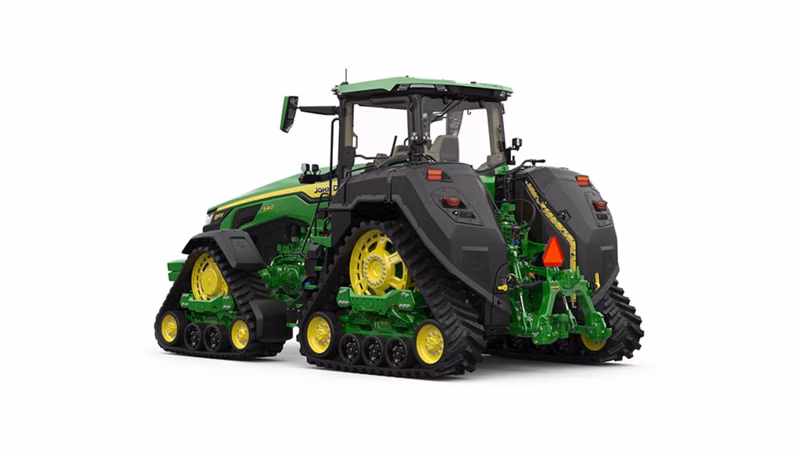

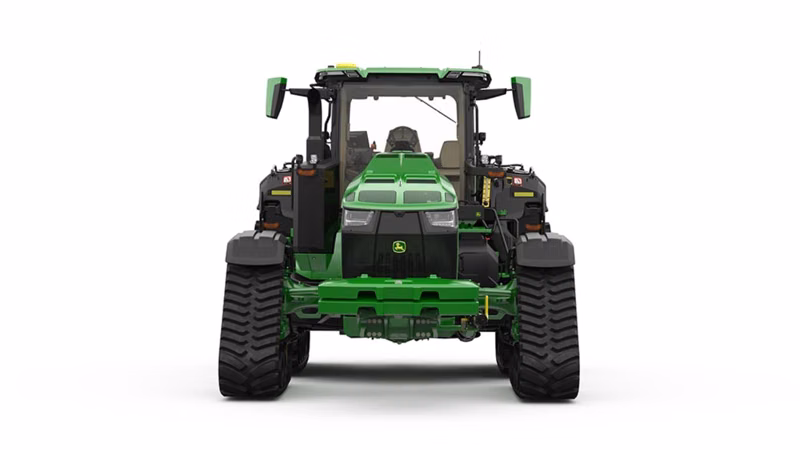

John Deere 8RX 540
Specifications
Manufacturer
John Deere
Model
8RX 540
Year
2026
Category
Tractors
Subcategory
Row Crop Tractors
Engine Make
John Deere
Engine Model
JD14
Engine Family
SJDXL13.5334
Emissions Certifications
Final Tier 4
Displacement (L)
13.6
Displacement (cu in )
827
Number of Cylinders
Six
Cylinder Liners
Wet-sleeve
Intelligent Power Management (IPM)
40
Rated Engine Speed (rpm)
1,900
Rated Engine Power (hp)
533
Rated Engine Power (kW)
397
Rated Engine Power (PS)
540
Rated Engine Power with IPM (hp)
572
Rated Engine Power with IPM (kw)
427
Rated Engine Power with IPM (PS)
580
Maximum Engine Speed (rpm)
1,900
Maximum Engine Power (hp)
585
Maximum Engine Power (kW)
437
Maximum Engine Power (PS)
594
Maximum Engine Power with IPM (hp)
625
Maximum Engine Power with IPM (kW)
466
Maximum Engine Power with IPM (PS)
634
Maximum Engine Torque
2,695 Nm
Constant Power Range
1,450 - 1,900 rpm
Power Bulge (%)
10
Cooling System Type
Liquid
Fuel Type
Ultra-low sulfur diesel
Alternative Fuel Type
B30 diesel
Torque Rise (%)
35
Rated PTO Power (hp)
482
Rated PTO Power (kW)
360
Rated PTO Power (PS)
489
Engine rpm at Rated PTO Speeds (1000/1000E/1.300)
1,801/1,387/1,803
Electric Power
ISOBUS Connector
Fuel Tank Capacity (gal )
296.6
Fuel Tank Capacity (L)
1,123
Cooling System Capacity (gal )
18.5
Cooling System Capacity (L)
70
Wheel or Track Configuration
Track
Drive Type
MFWD
Aspiration
Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
Aftertreatment Type
Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR)
Bore and Stroke (in )
5.2 x 6.5
Bore and Stroke (mm)
132 x 165
Compression Ratio 15
9:1
Lubrication
Full-pressure, full-flow filtration with bypass
Air Cleaner Type
Dual stage with exhaust aspiration
Transmission Type
eAutoPowr™ Electric Variable Transmission (EVT)
Maximum Speed Forward
40 km/h 26 mph
Minimum Speed Forward
0.05 km/h 0.03 mph
Reverser
Left and right hand
Clutch
Wet, multi-plate
Economy PTO Speeds
1,000 rpm
Engagement Method
Electrohydraulic switch
PTO Clutch
Multi-disk
Front Hitch Category
Category 3N ground engaging
Lift Capacity Through Full Lift Range at Coupling Points (lb)
12,434
Lift Capacity Through Full Lift Range at Coupling Points (kg)
5,640
Number of Front Selective Control Valves (SCVs)
Two
Rear Hitch Category (SAE Designation)
Category 4N/3
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point
10,886 kg 24,000 lb
Sensing Type
Electrohydraulic sensing
Drawbar Category
Cat 5
Maximum Vertical Load
8,636 kg 19,000 lb
Hydraulic System Type
Closed-center, pressure/flow compensated system with load sensing
Pump Rated Output
418 L/min 110 gpm
Maximum Operating Pressure (psi)
2,958
Maximum Operating Pressure (bar)
204
Number of Rear Selective Control Valves (SCVs)
Six
Available Flow at a Single Rear SCV
170 L/min 45 gpm
Available Flow at Front SCVs (gpm)
31
Available Flow at Front SCVs (L/min)
120
SCV Control
Electrohydraulic
Front Axle Type
1900 Series beam axle
Rear Axle Type
Inboard planetary three pinion
Final Drive
Inboard planetary three pinion
Steering Type
Reactive Command Steering (RCS)
Primary Brakes
Power, dual disc hydraulic
Secondary Brake
Front wet multi-disk brakes
Trailer Brakes
Air and/or hydraulic
Parking Brake
Intergrated parking brake
Track Drive Type
Positive
Number Of Mid Rollers
Three
Battery Voltage (V)
12
Electrical System Voltage (V)
12
Battery Cold Cranking Amps (CCA)
2,850
Battery Capacity
950 CCA
Alternator Capacity
330 amp
Seat Suspension
Passive seat
Cab Suspension
Adjustable
Inner Cab Volume (cu ft)
115
Inner Cab Volume (m³)
3.27
Guidance
SF-RTK
Secondary Display
Extended G5ᴾˡᵘˢ Monitor
Receiver
Intergrated StarFire™ 7500
Connectivity
JDLink™ Modem or JDLink Boost
Diesel Exhaust Fluid (DEF) Tank Capacity (gal )
18.2
Diesel Exhaust Fluid (DEF) Tank Capacity (L)
69
Transmission - Hydraulic System (gal)
72
Transmission - Hydraulic System (L)
274
Crankcase Oil Volume (gal)
12.94
Crankcase Oil Volume (L)
49
Wheelbase (in )
130.1
Wheelbase (mm)
3,305
Base Machine Weight (lb)
48,389
Base Machine Weight (kg)
21,949
Front Axle Ground Clearance (in )
25.24
Front Axle Ground Clearance (mm)
641
Drawbar Ground Clearance (in )
17
Drawbar Ground Clearance (mm)
432
Maximum Ballast Level (lb)
50,706
Maximum Ballast Level (kg)
23,000
Maximum Permissible Weight (lb)
62,831
Maximum Permissible Weight (kg)
28,500
PTO Category
4.45 cm 1.75 in 20 spline
Number of Splines
20 spline - 4.45 cm 1.75 in 22 spline - 5.72 cm 2.25 in
Track Tread Spacing
2,032 mm (80 in) 2,235.2 mm (88 in) 3,048 mm (120 in) 3,352.8 mm (132 in) 3,454.4 mm (136 in) 3,657.6 mm (144 in)
Track Width
533 mm (21 in) 610 mm (24 in) 762 mm (30 in)
Degree of Seat Swivel, Left Hand (degree (angle))
24
Degree of Seat Swivel, Right Hand (degree (angle))
40
Primary Display
G5ᴾˡᵘˢ Display - 325 mm 12.8 in
Radio
Touchscreen radio - 203 mm 8 in
Cab Glass Area (sq ft)
71.47
Cab Glass Area (m²)
6.64
Overall Height (in )
145.4
Overall Height (mm)
3,692
Transport Height (in )
145.4
Transport Height (mm)
3,692
Overall Width (in )
144
Overall Width (mm)
3,658
Overall Length (in )
299.3
Overall Length (mm)
7,603
