Description

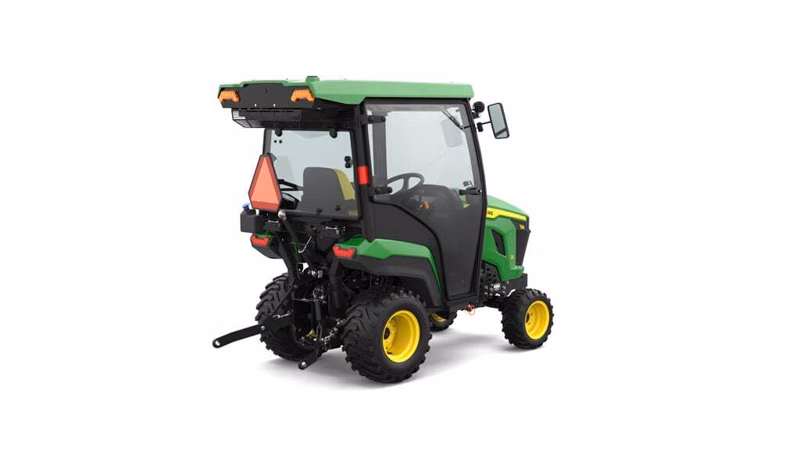

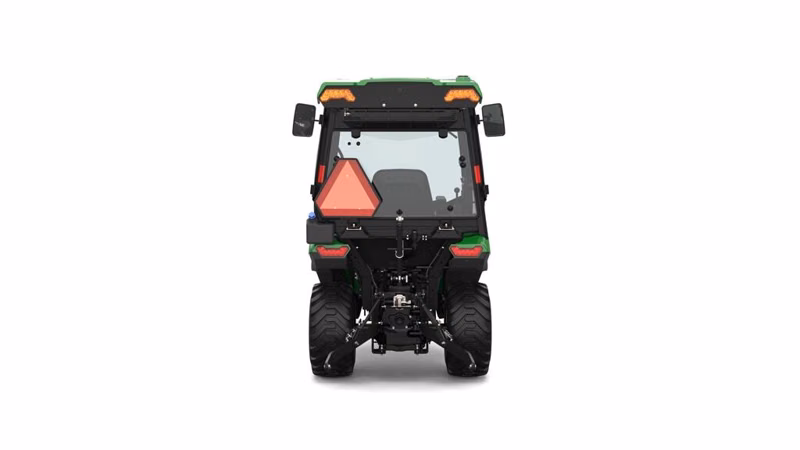

John Deere 1M 25
Specifications
Manufacturer
John Deere
Model
1M 25
Year
2026
Category
Tractors
Subcategory
Compact Tractors
Engine model
3TNV80F-NCJT
Engine power (gross) SAE J1995 rated power
17.8 kW 23.9 hp 24.2 PS at 3200 rpm
Power take-off (PTO) power
13.6 kW 18.2 hp
Rated engine speed
3200 rpm
Engine Type
Diesel
Emissions compliance
Final Tier 4
Cylinders/displacement
1.267 L 77.3 cu in
Number of cylinders
3
Cooling system
Water pump
Fuel tank capacity
24 L 6.3 U S gal
Manufacturer
Yanmar®
Injection pump type
Indirect injection
Aspiration
Natural
Air cleaner
Dual element with mechanical restriction indicator
Alternator (12-V)
40 amp
Standard transmission; forward/reverse
Hydrostatic - two range
Brakes
Wet disc (left-hand pedal)
Steering
Power steering
Axle capacity
Front 612 kg 1349 lb Rear 715 kg 1576 lb
Hydraulics Type
Open center
Pump rated output
Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm
Draft control sensing
Position control
Remote control valves available
Three
3-point hitch Type
Limited Category 1
Lift capacity, 24-in behind link arms
344 kg 758 lb
Standard
Rear - 540 rpm Mid - 2100 rpm
Control
Independent
Clutch
Wet disk
Brake (for mid and rear PTO)
Wet disk
Rollover protective structure
Type Foldable Yes
Doors
Two
Seat equipment
Suspension Seat
Approximate shipping weight (open-station; cab) Open station
706 kg 1556 lb Cab: 906 kg 1996 lb
Front R3 Turf
18x8.50-10 R3 Turf Radial: 18x8.50-10 R4: 18x8.5-10
Rear R3 Turf
26x12-12 R4: 26x12-12
Bore and stroke
80 x 84 mm 3.15 x 3.31 in
Battery size
500 CCA
Wheelbase
1450 mm 57.1 in
Front axle clearance
195 mm 7.7 in
Turning radius with brakes
2.51 m 8.2 ft
Turning radius without brakes
2.32 m 7.61 ft
Front tread range
915 mm 36 in
Rear tread spacing
896 mm 35 in
