Description

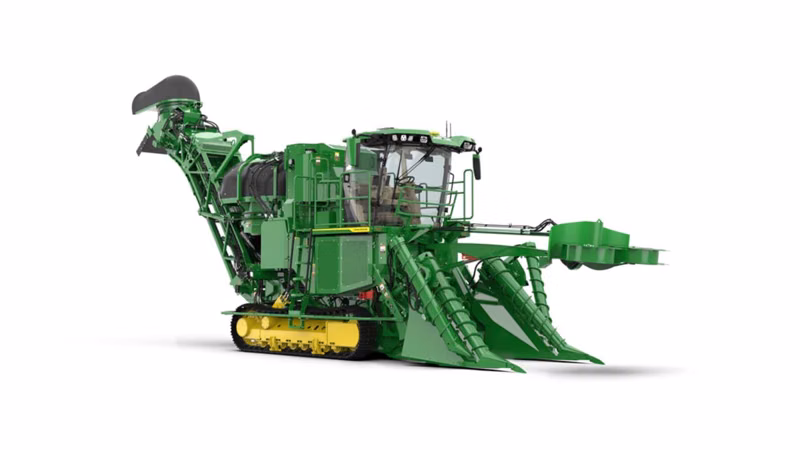

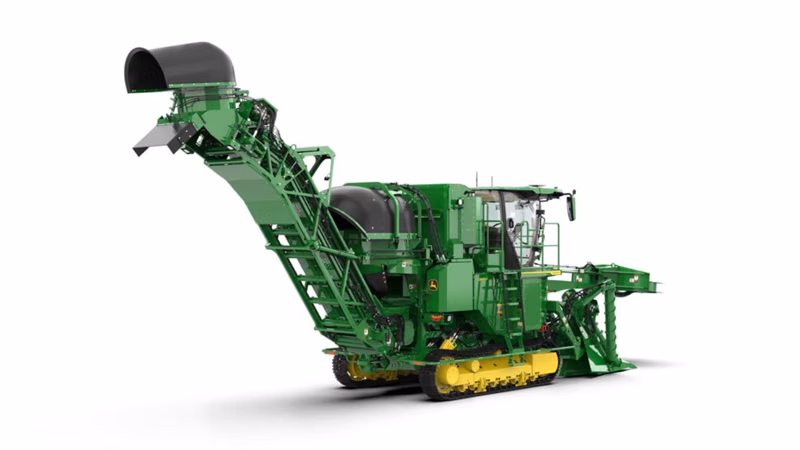

John Deere CH770
Specifications
Manufacturer
John Deere
Model
CH770
Year
2026
Category
Harvesters
Subcategory
Sugar Cane Harvester
Standard power @ 2100 rpm
251 kW 337 hp 342 CV
Standard power @ 2000 rpm
261 kW 350 hp 355 CV
Cylinders
Inline six, wet sleeves
Displacement
9.0 L 548 cu in
Engine speeds
Low idle 850 rpm Field cruise Manually adjustable from 1,900 to 2,200 rpm Full throttle 2,210 rpm Auto field cruise Engine speed adjusts to load automatically between 2,000 and 2,210 rpm
Cooling system Type
Automatically controlled, hydraulically driven reversing cooling fan
Fuel
605 L 160 gal
Make
John Deere PowerTech Plus 9.0 L
Model
6090HT Diesel
Family
AJDXL09.0102
Emission certification
Available Tier 2, Tier 3 and Tier 4 to meet destination country regulations
Injection pump
Electronically controlled
Aspiration
Turbocharger with air-to-air aftercooling
Alternator
200 amp 12 V
Transmission Type
Two hydrostatic pumps providing variable speed
Wheel machine travel speed
0 to 24.6* km/h 0 to 15.3* mph
Parking
Multiple wet disc, spring applied hydraulic released
Hydraulic oil
405 L 106 gal
Standard tires
Front Michelin 360/70R17.5 AT (Radial) Rear GPX 23.5 by 25 (20-ply) industrial tire with agricultural lug
Air conditioning
Pressurized cab with air conditioning and heating
Front-tipping cab
Manual hydraulic pump operation
Seat
Air suspension with swivel
Radio
Standard Premium with Bluetooth
Standard
Eight lights on cab including four LED Four auxiliary halogen lights
Topper Drive
Hydraulic, reversible drive
Topper Shock absorption
Nitrogen accumulator
Whole topper
Standard eight blade single cut
Scrolls
Outside and inside scrolls standard
Crop dividers Drive
Hydraulic, reversible
Factory hard surfacing
Skirts, slip-on shoes, toes
Knockdown rollers Drive
Hydraulic, reversible drive

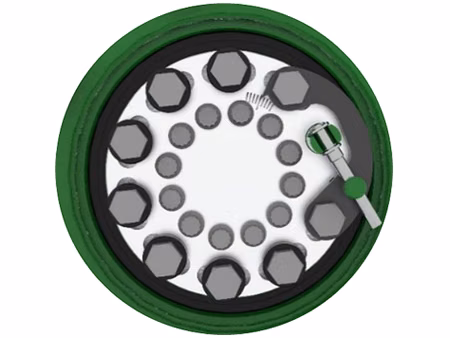

Base cutter Drive
Three disc, high drive
Number of blades per disc
Five
Buttlifter Drive
Hydraulic, reversible drive
Feed rollers Drive
Hydraulic, reversible drive
Number of rollers
10
Feed rollers Bearing location
External
Chopper Bearing location
External

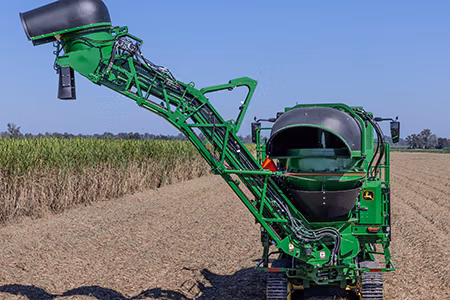

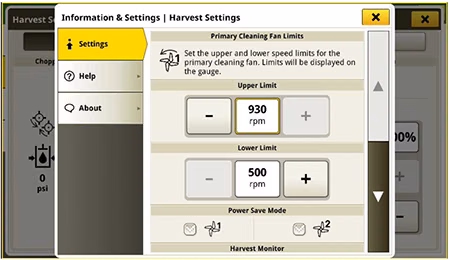

Primary extractor Fan drive
Hydrostatic, variable speed
Fan number of blades
Four
Maximum fan speed Factory set at
1,000 rpm Possible: 1,360 rpm
Primary extractor Hood rotation
Hydraulic controlled
Chain adjustment
Grease cylinder
Sprocket drive
Hydraulic motor driven, reversible
Elevator swing
Hydraulic controlled, trunnion cylinders
Elevator Shock absorption
Nitrogen accumulator
Bin flap position
Hydraulic controlled
Tread width
Front 2.08 m 82 in Rear 1.88 m 74 in
Maximum whole topper reach
5.2 m 17 ft
Extended width whole topper
Overall width - 2.4 m 93.1 in Compared to on standard topper, 1.8 m 71.5 in
Inside scrolls approach angle
46 degree
Standard disc diameter
With hard surfacing, 61 cm 24 in
Center distance
63 cm 24.8 in
Drum center distance
38.1 cm 15 in
Blade width
9.5 cm 3.74 in
Fan diameter
1.5 m 5 ft
Width
86.9 cm 34.2 in
Total swing angle, degrees
170 degree (angle)
