Description

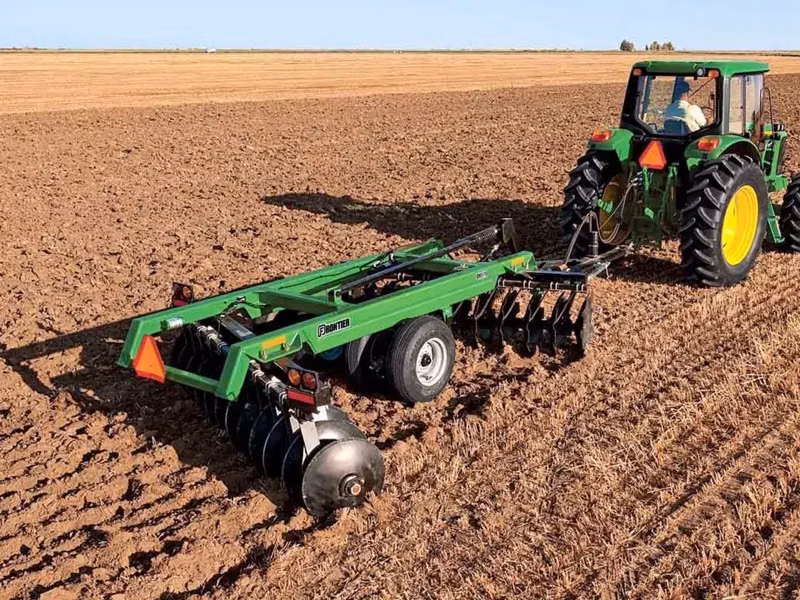

The DH5110 - 10-ft Rigid Single Offset Disk with 23 Blades offers exceptional soil preparation and residue management with its durable construction and available blade configurations. Engineered and built to take on tough tillage jobs.
Specifications
Manufacturer
John Deere
Model
DH5110
Year
2026
Category
Agricultural Equipment
Subcategory
Tractor Attachments And Implements
Recommended Drawbar HP Range
90-110 hp
Quantity
23
Type
Single Offset Rigid
Duty
General Purpose
Recommended PTO HP Range
106-129 hp
Time Period
1 year
Markings
SMV
Scrapers
Adjustable
Axle Material
Round Heat Treated Alloy Steel Threaded on Both Ends
Front Angle
2 Positions degree (angle)
Bearing Standards
Welded, Reinforced
Rear Angle
2 Positions degree (angle)
Bearing Type
Oil Bath Tapered Roller
Blade Concavity
Standard: high; Optional: low
Labor Hours
2-3 for two people
Wheel Hub Bearings
Dual Tapered Roller Bearings
Front Hitch Type
Spade
Weight Per Disk
282 lb
Net
5,925 lb lb
Weight Per Disk Blade
282 lb lb
Type
Implement - Quantity of 4
Wheel Hub Type
6 Bolt
Size
9.5L x 15-in 8 ply
Approximate Working Width
10.0 ft
Spacing
10.5 in
Transport - Width
11.0 ft
Maximum Penetration
0.75 ft
Blade Option Two
28x0.312 in in
Blade Option One
26x0.312 in in
Axle Size
1.625, 2.125 in
Tube Size
5x5x0.375 in , 12.7x12.7x0.95 cm
Main Frame Tube
5x5x0.375 in , 12.7x12.7x0.95 cm
Ground Clearance With Base Blades
8.0 in
