Description

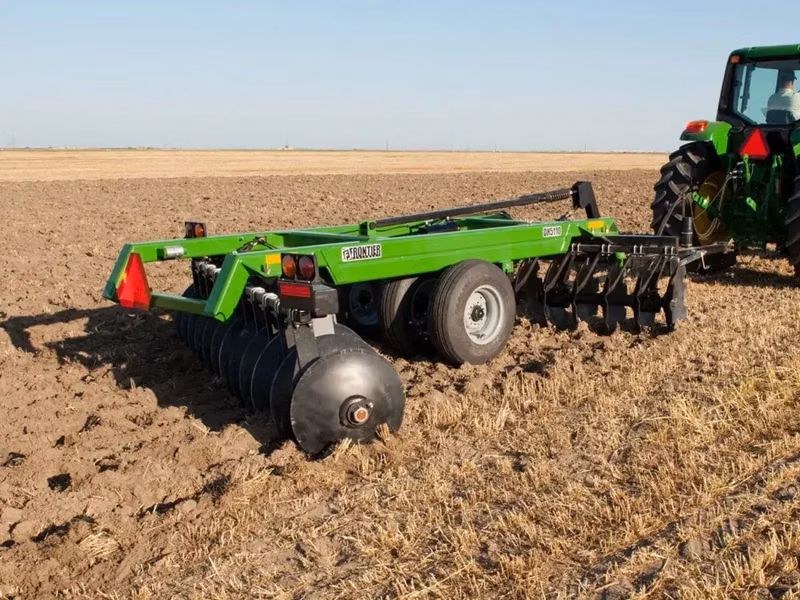

The DH5217 - 17-ft Rigid Single Offset Disk with 41 Blades offers exceptional soil preparation and residue management with its durable construction and available blade configurations. Engineered and built to take on tough tillage jobs.
Specifications
Manufacturer
John Deere
Model
DH5217
Year
2026
Category
Agricultural Equipment
Subcategory
Tractor Attachments And Implements
Recommended Drawbar HP Range
160-180 hp
Quantity
41
Type
Single offset rigid
Duty
Medium
Recommended PTO HP Range
188-212 hp
Time Period
1 year
Markings
SMV
Scrapers
Adjustable
Axle Material
Round heat treated alloy steel threaded on both ends
Front Angle
2 Positions degree (angle)
Bearing Standards
Welded, reinforced
Rear Angle
2 Positions degree (angle)
Bearing Type
Oil bath tapered roller
Blade Concavity
Standard: high, Optional: low
Material
Round heat treated alloy steel threaded on both ends
Labor Hours
2-3 hours
Approximate Assembly Time
2-3 hours
Rear Gang Angles
2 Positions degree (angle)
Front Gang Angles
2 Positions degree (angle)
Gang / Frame Tubing
6x6x0.375
Wheel Hub Bearings
Dual tapered roller bearings
Front Hitch Type
Spade
Weight Per Disk
270 lb
Net
10550 lb
Weight Per Disk Blade
270 lb
Type
Implement
Wheel Hub Type
8 Bolt
Size
12.5L x 15-in 10 ply
Approximate Working Width
17.0 ft
Spacing
10.5 in
Transport - Width
18.0 ft
Maximum Penetration
0.75 ft
Blade Option Two
28x0.312 in
Blade Option One
26x0.312 in
Axle Size
1.625, 2.125 in
Diameter
1.625 in
Tube Size
6x6x0.375 in , 15.2x15.2x0.95 cm
Main Frame Tube
6x6x0.375 in , 15.2x15.2x0.95 cm
Ground Clearance With Base Blades
8.0 in
