Description

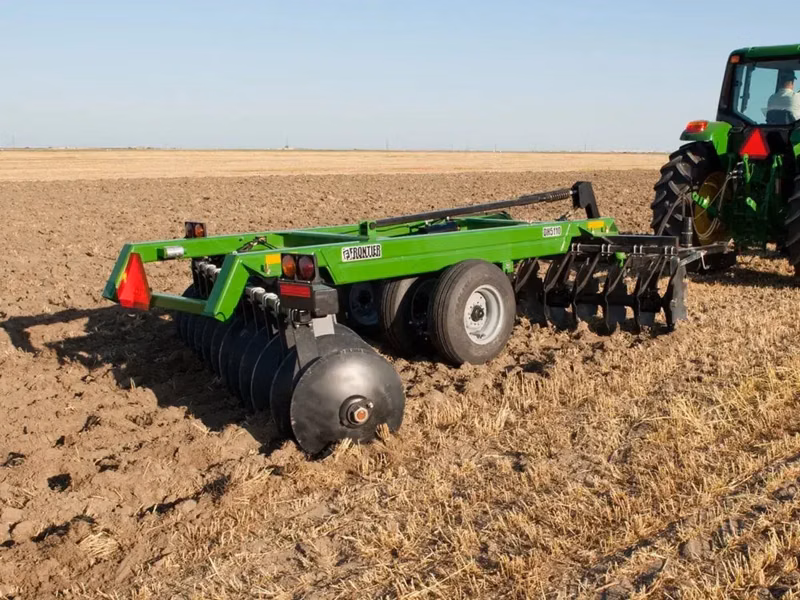

The DH5224F - 24-ft Single Offset Folding Disk with 57 Blades offers exceptional soil preparation and residue management with its durable construction and available blade configurations. Engineered and built to take on tough tillage jobs.
Specifications
Manufacturer
John Deere
Model
DH5224F
Year
2026
Category
Agricultural Equipment
Subcategory
Tractor Attachments And Implements
Recommended Drawbar HP Range
200-260 hp
Quantity
57
Type
Single offset folding
Duty
Medium
Recommended PTO HP Range
235-306 hp
Time Period
1 year
Markings
SMV
Scrapers
Adjustable
Axle Material
Round heat treated alloy steel threaded on both ends
Front Angle
2 Positions degree (angle)
Bearing Standards
Welded, Reinforced
Rear Angle
2 Positions degree (angle)
Bearing Type
Oil bath tapered roller
Blade Concavity
Standard: high, Optional: low
Labor Hours
4-6 for two people
Wheel Hub Bearings
Dual tapered roller bearings
Front Hitch Type
Spade
Weight Per Disk
273 lb
Net
15000 lb
Weight Per Disk Blade
273 lb
Type
Implement- Quantity of 4
Wheel Hub Type
8 Bolt
Size
12.5L x 15 10 ply
Approximate Working Width
24.0 ft
Spacing
10.5 in
Transport - Width
12.5 ft
Maximum Penetration
0.75 ft
Blade Option Two
28x0.312 in
Blade Option One
26x0.312 in
Axle Size
1.625, 2.125 in
Tube Size
6x6x0.375 in , 15.2x15.2x0.95 cm
Main Frame Tube
6x6x0.375 in , 15.2x15.2x0.95 cm
Ground Clearance With Base Blades
8.0 in
