Description

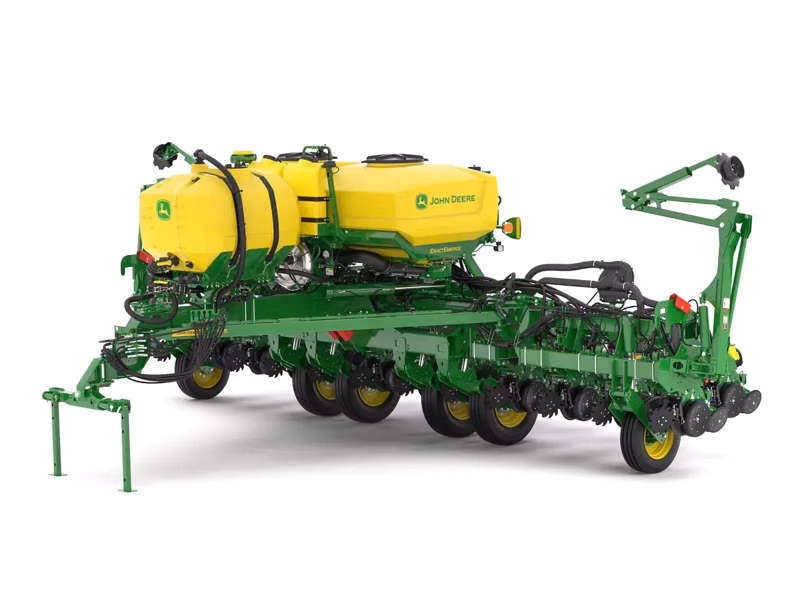

Available in several configurations to meet a wide range of row counts and spacings, the 1795 brings together John Deere’s most practical and productive planting technologies.
Specifications
Manufacturer
John Deere
Model
1795 12Row Split 23
Year
2026
Category
Planer Attachments
Subcategory
DB Planters
Base Seed Meter
Vacuum
Frame Flexibility - Up
15.0 degree (angle)
Frame Flexibility - Down
15.0 degree (angle)
Number Of Rows
23
Seed Hopper Capacity
0.062 bu
CCS Seed Capacity - With Liquid Tank
70.0 bu
CCS Seed Capacity - Without Liquid Tank
100.0 bu
Recommended Tractor Hydraulics
Hydraulic oil pump required to operate ExactEmerge™ planter: 60 gpm 227 L/min; Tractor standby pressure: 2300 psi 158.6 bar; Hydraulic system working pressure: 3000 psi 206.8 bar; Hydraulic system burst pressure: 12,000 psi 827.4 bar
Base
Hydraulic variable rate drive
Lift System Type
Wheel modules with rephasing hydraulic cylinders
Opener
Tru-Vee™ double disk
Tank Capacity
420.0 gal
Base
Wing tires: VF245/70R19.5; Center tires: VF295/75R22.5
Recommended Tractor Horsepower
Minimum required for 9.1 m (30 ft) models: 270 hp 201.3 kW; Minimum required for 12.2 m (40 ft) models: 360 hp 268.5 kW
Row Spacing
15 in
Transport Height
13.48 ft
Field Operation Width
32.39 ft
Transport Length
29.25 ft
Transport Width (With Markers)
13.27 ft
Field Operation Length
23.46 ft
