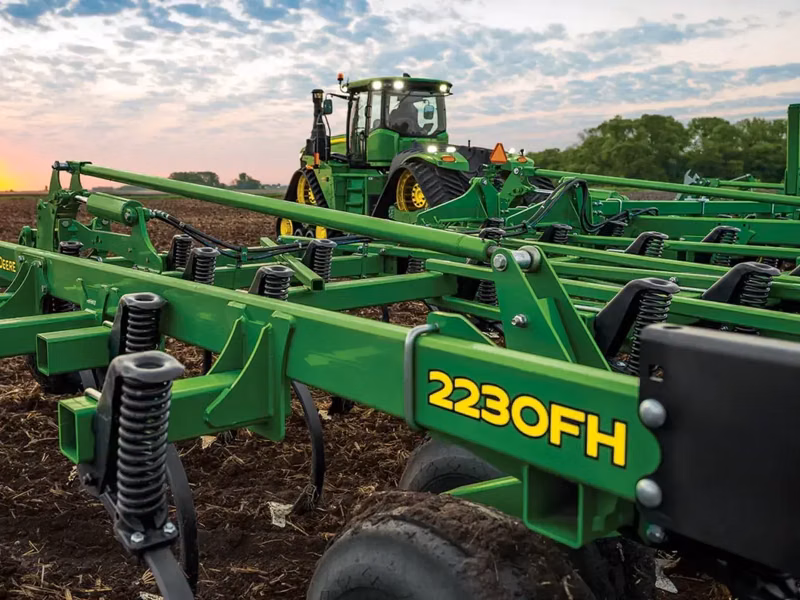

2026 John Deere 2230FH 11-ft Center Frame, 33 ft, 6 in
Agricultural EquipmentField Cultivators
Description
The John Deere 2230FH Floating Hitch 3-Section Field Cultivator, with its 11-ft center frame and 33 ft, 6 in. width, offers superior ground-hugging capability and efficient agronomic performance with consistent depth control across varying terrains, maximizing productivity by covering up to 41 acres per hour at optimal working speeds.
Specifications
Manufacturer
John Deere
Model
2230FH 11-ft Center Frame, 33 ft, 6 in
Year
2026
Category
Agricultural Equipment
Subcategory
Field Cultivators
Operating Speed
6 - 10 mph
Horsepower Required
8 to 12 hp/ft (19.6 to 29.4 kW/m)
Number of Ranks - 3-Section
3.4-m (11-ft) center frame with 5-rank tube frame
Spike Tooth Harrow Option 1 - Angle
23 - 51 degree (angle)
Rolling Basket Harrow Option 2
3-bar coil tine with flat-bar basket
Rolling Basket Harrow Option 2 - Bearings
Maintenance-free
Rolling Basket Harrow Option 2 - Adjustments
Tool-free harrow adjustments ranging from 36 to 75 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 1
3-bar coil-tine with round-bar basket
Spike Tooth Harrow Option 1 - Adjustments
Tool-free three-position pin adjustment
Coil Tine Harrow Option 1 - Angle
36 to 75 degree
Rolling Basket Harrow Option 3 - Adjustments
Tool-free harrow adjustments ranging from 23 to 51 degrees and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Spike Tooth Harrow Option 1
6-bar spike-tooth harrow
Coil Tine Harrow Option 1
4-bar coil-tine harrow
Coil Tine Harrow Option 1 - Adjustments
Tool-free four-position pin adjustments ranging from 36 to 75 degrees
Rolling Basket Harrow Option 2 - Bar Type
Flat
Rolling Basket Harrow Option 1 - Bar Type
Round
Rolling Basket Harrow Option 4
3-bar spike tooth with flat-bar basket
Rolling Basket Harrow Option 1 - Adjustments
Tool-free harrow adjustments ranging from 36 to 75 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 4 - Adjustments
Tool-free harrow adjustments ranging from 23 to 51 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 3
3-bar spike tooth with round-bar basket
Rolling Basket Harrow Option 1 - Bearings
Maintenance-free
Option 2 - Trip Force
150.0 lb
Option 1
TruPosition™ standard (Split-the-middle spacing)
Option 2
TruPosition
Option 3
S-tine
Option 1 - Trip Force
200.0 lb
Tongue Weight Rating
1500.0 lb
Hydraulic Hoses And Couplers
Two circuits provided
Fold Type
Over-center fold
Ground-Engaging Components
Wide variety of sweeps, shovels, and points
3-Section
(6) 11L-15 FI LR D tires
Type
Wing frame tires on Walk-Over tandem wheels (radial tire option available)
Transport Height (Without Rear Harrow) - 3-Section
14.83 ft (4.52 m)
Operating Depth
5 in
Standard Spacing - Split-The-Middle
6 in
Working Width - 3-Section
33.5 ft (10.21 m)
Underframe Clearance
24.0 in
Fore-And-Aft Clearance - On 2.7-m And 3.4-m (9-ft And 11-ft) Center Frames
11.17 ft
Fore-And-Aft Clearance - On 4.6-m (15-ft) Center Frames
13.67 ft
Rigid Frame
22.5 ft (6.86 m)
Transport Width (Without Rear Harrow) - 3-Section
15.83 ft (4.82 m)
Rolling Basket Harrow Option 1 - Effective Spacing
3.0 in
Rolling Basket Harrow Option 2 - Effective Spacing
3.0 in
Spike Tooth Harrow Option 1 - Spike Dimension
0.75x0.75x12 in
Spike Tooth Harrow Option 1 - Effective Spacing
1.75, 3.5 in
Rolling Basket Harrow Option 4 - Spike/Tine Dimensions
0.75x0.75x12 in
Coil Tine Harrow Option 1 - Tine Spacing
9.0 in
Rolling Basket Harrow Option 4 - Effective Spacing
1.75 in
Coil Tine Harrow Option 1 - Effective Spacing
2.25 in
Rolling Basket Harrow Option 3 - Effective Spacing
1.75 in
Rolling Basket Harrow Option 3 - Spike/Tine Dimensions
0.75x0.75x12 in
Rolling Basket Harrow Option 1 - Bar Size
1.0 in
Spike Tooth Harrow Option 1 - Rank Spacing
12.0 in
Rolling Basket Harrow Option 2 - Rank Spacing
15.0 in
Rolling Basket Harrow Option 4 - Spike/Tine Spacing
10.5 in
Rolling Basket Harrow Option 1 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 1 - Spike/Tine Dimensions
16 in
Rolling Basket Harrow Option 1 - Rank Spacing
15.0 in
Spike Tooth Harrow Option 1 - Spike Spacing
10.5 in
Rolling Basket Harrow Option 2 - Spike/Tine Dimensions
16 in
Rolling Basket Harrow Option 3 - Spike/Tine Spacing
10.5 in
Coil Tine Harrow Option 1 - Rank Spacing
15.0 in
Coil Tine Harrow Option 3 - Tine Dimensions
16 in
Rolling Basket Harrow Option 2 - Bar Size
1.5x0.25 in
Option 1 - Spacing
6.0 in
Option 1 - Trip Height
10.0 in
Option 2 - Spec
0.625x1.75 in
Option 1 - Underframe Clearance
24.0 in
Option 3 - Spec
0.5x1.75 in
Option 1 - Maximum Operating Depth
5.0 in
Option 3 - Underframe Clearance
24.0 in
Option 3 - Spacing
4.5 in
Option 2 - Underframe Clearance
24.0 in
Option 1 - Spec
0.75x1.75x24 in
Option 2 - Trip Height
10.0 in
Option 2 - Spacing
6, 9 in
Option 2 - Maximum Operating Depth
5.0 in
