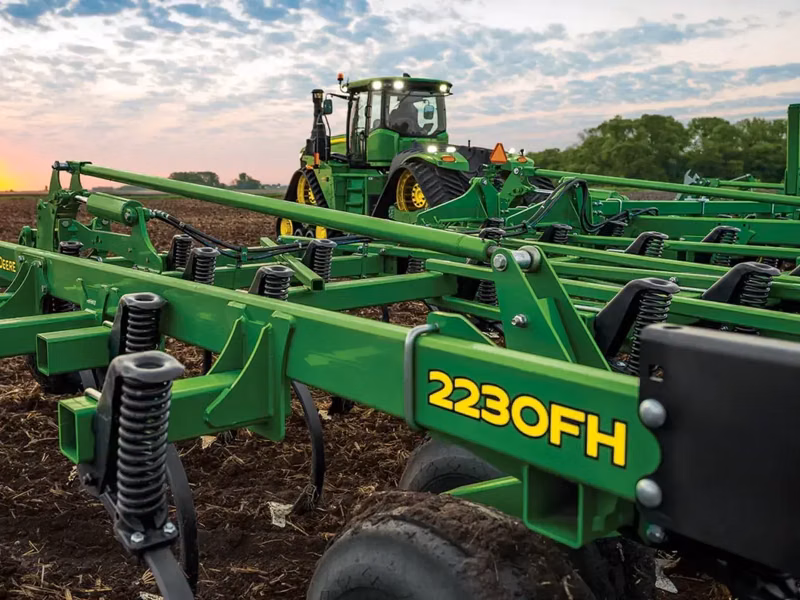

2026 John Deere 2230FH 5-Section, 15-ft Center Frame, 69 ft, 6 in
Agricultural EquipmentField Cultivators
Description
The 2230FH Floating Hitch 5-Section Field Cultivator, with its robust 15-ft center frame and expansive 69 ft, 6 in. width, ensures superior soil health and optimized crop production by delivering unmatched precision and consistency in field preparation.
Specifications
Manufacturer
John Deere
Model
2230FH 5-Section, 15-ft Center Frame, 69 ft, 6 in
Year
2026
Category
Agricultural Equipment
Subcategory
Field Cultivators
Operating Speed
6 - 10 mph
Horsepower Required
8 to 12 hp/ft (19.6 to 29.4 kW/m)
Number of Ranks - 5-Section
4.6-m (15-ft) center frame with 6-rank tube frame
Spike Tooth Harrow Option 1 - Angle
23 - 51 degree (angle)
Rolling Basket Harrow Option 2
3-bar coil tine with flat-bar basket
Rolling Basket Harrow Option 2 - Bearings
Maintenance-free
Rolling Basket Harrow Option 2 - Adjustments
Tool-free harrow adjustments ranging from 36 to 75 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 1
3-bar coil-tine with round-bar basket
Spike Tooth Harrow Option 1 - Adjustments
Tool-free three-position pin adjustment
Coil Tine Harrow Option 1 - Angle
36 to 75 degree
Rolling Basket Harrow Option 3 - Adjustments
Tool-free harrow adjustments ranging from 23 to 51 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Spike Tooth Harrow Option 1
6-bar spike-tooth harrow
Coil Tine Harrow Option 1
4-bar coil-tine harrow
Coil Tine Harrow Option 1 - Adjustments
Tool-free four-position pin adjustments ranging from 36 to 75 degrees
Rolling Basket Harrow Option 2 - Bar Type
Flat
Rolling Basket Harrow Option 1 - Bar Type
Round
Rolling Basket Harrow Option 4
3-bar spike tooth with flat-bar basket
Rolling Basket Harrow Option 1 - Adjustments
Tool-free harrow adjustments ranging from 36 to 75 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 4 - Adjustments
Tool-free harrow adjustments ranging from 23 to 51 degree and hydraulically adjustable baskets up to 800 psi (5,516 kPa)
Rolling Basket Harrow Option 3
3-bar spike tooth with round-bar basket
Rolling Basket Harrow Option 1 - Bearings
Maintenance-free
Option 2 - Trip Force
150.0 lb
Option 1
TruPosition™ standard (Split-the-middle spacing)
Option 2
TruPosition
Option 3
S-tine
Option 1 - Trip Force
200.0 lb
Tongue Weight Rating
1500.0 lb
Hydraulic Hoses And Couplers
Two circuits provided
Fold Type
Over-center fold
Ground-Engaging Components
Wide variety of sweeps, shovels, and points
5-Section
(6) 12.5-L-15 FI LR D tires
Type
Wing frame tires on Walk-Over tandem wheels (radial tire option available)
Operating Depth
5 in
Standard Spacing - Split-The-Middle
6 in
Transport Height (Without Rear Harrow) - 5-Section
17.58 ft (5.36 m)
Underframe Clearance
24.0 in
Fore-And-Aft Clearance - On 2.7-m And 3.4-m (9-ft And 11-ft) Center Frames
11.17 ft
Fore-And-Aft Clearance - On 4.6-m (15-ft) Center Frames
13.67 ft
Rigid Frame
22.5 ft (6.86 m)
Transport Width (Without Rear Harrow) - 5-Section
23.5 ft (7.16 m)
Rolling Basket Harrow Option 1 - Effective Spacing
3.0 in
Rolling Basket Harrow Option 2 - Effective Spacing
3.0 in
Spike Tooth Harrow Option 1 - Spike Dimension
0.75x0.75x12 in
Spike Tooth Harrow Option 1 - Effective Spacing
1.75, 3.5 in
Rolling Basket Harrow Option 4 - Spike/Tine Dimensions
0.75x0.75x12 in
Coil Tine Harrow Option 1 - Tine Spacing
9.0 in
Rolling Basket Harrow Option 4 - Effective Spacing
1.75 in
Coil Tine Harrow Option 1 - Effective Spacing
2.25 in
Rolling Basket Harrow Option 3 - Effective Spacing
1.75 in
Rolling Basket Harrow Option 3 - Spike/Tine Dimensions
0.75x0.75x12 in
Rolling Basket Harrow Option 1 - Bar Size
1.0 in
Spike Tooth Harrow Option 1 - Rank Spacing
12.0 in
Rolling Basket Harrow Option 2 - Rank Spacing
15.0 in
Rolling Basket Harrow Option 4 - Spike/Tine Spacing
10.5 in
Rolling Basket Harrow Option 1 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 1 - Spike/Tine Dimensions
16 in
Rolling Basket Harrow Option 1 - Rank Spacing
15.0 in
Spike Tooth Harrow Option 1 - Spike Spacing
10.5 in
Rolling Basket Harrow Option 2 - Spike/Tine Dimensions
16 in
Rolling Basket Harrow Option 3 - Spike/Tine Spacing
10.5 in
Coil Tine Harrow Option 1 - Rank Spacing
15.0 in
Coil Tine Harrow Option 3 - Tine Dimensions
16 in
Rolling Basket Harrow Option 2 - Bar Size
1.5x0.25 in
Option 1 - Spacing
6.0 in
Option 1 - Trip Height
10.0 in
Option 2 - Spec
0.625x1.75 in
Option 1 - Underframe Clearance
24.0 in
Option 3 - Spec
0.5x1.75 in
Option 1 - Maximum Operating Depth
5.0 in
Option 3 - Underframe Clearance
24.0 in
Option 3 - Spacing
4.5 in
Option 2 - Underframe Clearance
24.0 in
Option 1 - Spec
0.75x1.75x24 in
Option 2 - Trip Height
10.0 in
Option 2 - Spacing
6, 9 in
Option 2 - Maximum Operating Depth
5.0 in
Working Width - 5-Section
69.5 ft (21.2 m)
