Description

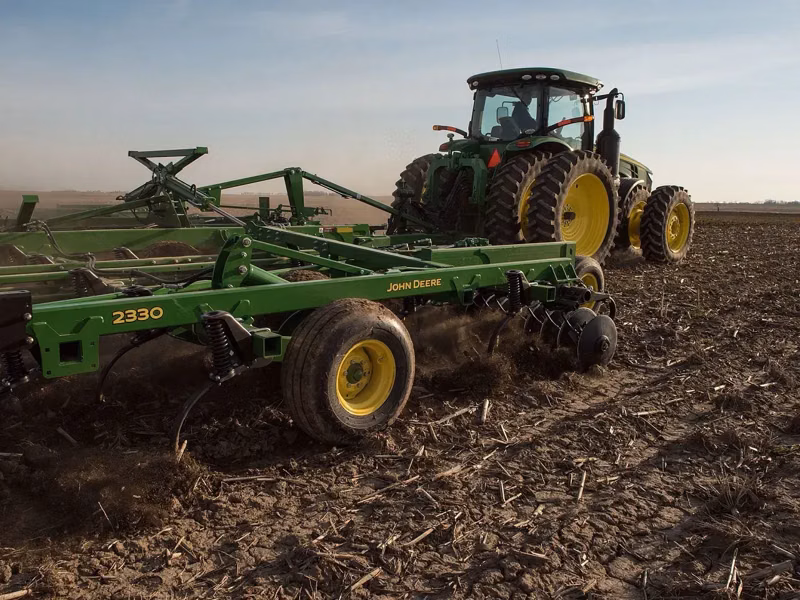

The John Deere 2330 3-Section Mulch Finisher, with its 10-ft center frame and 30-ft, 9-in. width, offers unmatched versatility and efficiency in preparing a high-quality seedbed with superior residue management for productive and sustainable farming.
Specifications
Manufacturer
John Deere
Model
2330 (3-Section, 30 ft, 9 in)
Year
2026
Category
Tiller Implements
Subcategory
Mulch Finisher
Operating Speed
6-10 mph
Horsepower Required
10-14 hp/ft
Rolling Basket Harrow Option 1 - Bearings
Dura-Flex, self-aligning and greaseable
Rolling Basket Harrow Option 1 - Adjustments
Angle and aggressiveness
Rolling Basket Harrow Option 1
4-bar spike with single flat-bar rolling basket
Rolling Basket Harrow Option 2
4-bar spike with single, round-bar rolling basket
Rolling Basket Harrow Option 2 - Bearings
Dura-Flex, self-aligning and greaseable
Rolling Basket Harrow Option 4
3-bar coil with round-bar rolling basket
Rolling Basket Harrow Option 3
3-bar coil with flat-bar rolling basket
Spike Tooth Harrow Option 1 - Angle
15-45 degree (angle)
Rolling Basket Harrow Option 2 - Adjustments
Angle and aggressiveness
Coil Tine Harrow Option 1 - Adjustments
Depth, pitch, and angle
Rolling Basket Harrow Option 3 - Bearings
Dura-Flex, self-aligning and greaseable
Spike Tooth Harrow Option 1
Adjustable 6-bar spike-tooth
Rolling Basket Harrow Option 3 - Adjustments
Angle and aggressiveness
Coil Tine Harrow Option 1 - Angle
15-60 degree (angle)
Coil Tine Harrow Option 1
Adjustable 5-bar coil-tine
Rolling Basket Harrow Option 4 - Adjustments
Angle and aggressiveness
Rolling Basket Harrow Option 4 - Bearings
Dura-Flex, self-aligning and greaseable
Tongue Weight Rating
1500.0 lb
Hydraulic Hoses And Couplers
One set
Number Of Ranks
5
Date Collected
2025-10-22
Type of Scrapers
Combination
Gang Angle
8.0 degree (angle)
Blade Concavity
Low
Type Of Spool
Steel fabricated
Depth Adjustment - Base Equipment
TruSet in-cab depth/pressure control and single-point depth control
Type
Flex - 3-section
3-Section
IF320/70R15 tires (four)
Type
Mechanical stabilizer wheels and tires available on 3-section and 5-section
Working Widths - 3-Section
9.37 m 30.75 ft
Standard Spacing
9 in
Maximum Operating Depth
6.0 in
Rolling Basket Harrow Option 2 - Spike/Tine Dimensions
0.75x0.75x12 in
Rolling Basket Harrow Option 2 - Rank Spacing
12.0 in
Rolling Basket Harrow Option 4 - Spike/Tine
16.0 in
Coil Tine Harrow Option 1 - Tine Spacing
12.5 in
Rolling Basket Harrow Option 4 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 1 - Effective Spacing
3.5 in
Spike Tooth Harrow Option 1 - Spike Dimension
0.75x0.75x12 in
Rolling Basket Harrow Option 1 - Spike/Tine
12.0 in
Rolling Basket Harrow Option 2 - Spike/Tine
12.0 in
Spike Tooth Harrow Option 1 - Spike Spacing
10.5 in
Rolling Basket Harrow Option 4 - Rank Spacing
15.0 in
Rolling Basket Harrow Option 2 - Effective Spacing
3.5 in
Rolling Basket Harrow Option 3 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 3 - Spike/Tine Dimensions
16 in
Coil Tine Harrow Option 1 - Tine Dimensions
16.0 in
Rolling Basket Harrow Option 3 - Effective Spacing
3.0 in
Rolling Basket Harrow Option 3 - Spike/Tine
16.0 in
Rolling Basket Harrow Option 4 - Effective Spacing
3.0 in
Rolling Basket Harrow Option 1 - Rank Spacing
12.0 in
Rolling Basket Harrow Option 2 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 1 - Spike/Tine Dimensions
0.75x0.75x12 in
Coil Tine Harrow Option 1 - Effective Spacing
2.5 in
Rolling Basket Harrow Option 1 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 1 - Bearings Diameter
3.0 in
Rolling Basket Harrow Option 1 - Spike/Tine Spacing
10.5 in
Spike Tooth Harrow Option 1 - Effective Spacing
1.75 in
Rolling Basket Harrow Option 2 - Spike/Tine Spacing
10.5 in
Rolling Basket Harrow Option 3 - Spike/Tine Spacing
9.0 in
Rolling Basket Harrow Option 4 - Spike/Tine Spacing
9.0 in
Coil Tine Harrow Option 1 - Rank Spacing
15.0 in
Rolling Basket Harrow Option 2 - Bearings Diameter
3.0 in
Rolling Basket Harrow Option 3 - Bearings Diameter
3.0 in
Rolling Basket Harrow Option 4 - Spike/Tine Dimensions
16 in
Rolling Basket Harrow Option 4 - Bearings Diameter
3.0 in
Rolling Basket Harrow Option 3 - Rank Spacing
15.0 in
Spike Tooth Harrow Option 1 - Rank Spacing
12.0 in
Underframe Clearance
24.0 in
Fore-And-Aft
134.0 in
Tubing
Centerframe - 3 m 10 ft, in Rank tubes - 10.2x10.2 cm 4x4 in Mainframe fore-aft tubes - 7.6x20.3 cm 3x8 in Wing fore-aft tubes - 7.62x15.2 cm 3x6 in
Blade Size
20x0.197 in
Vertical Adjustment
From even with the sweeps to 20.3 cm 8 in
Blade Spacing
7.25 in
Gang Shaft Diameter
1.125 in
Maximum Depth - Even With Sweep
5.0 in
Transport Height (Without Rear Harrow) - 3-Section
4.62 m 15.17 ft
Transport Width (Without Rear Harrow) - 3-Section
4.5 m 14.75 ft
