Description

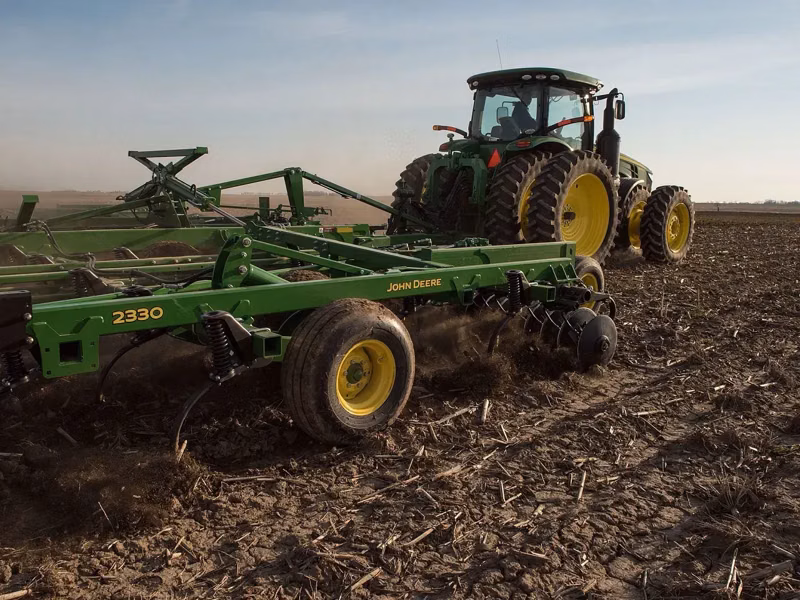

The John Deere 2330 3-Section Mulch Finisher, with its 10-ft center frame and 33-ft, 9-in. working width, offers unparalleled efficiency and versatility, allowing producers to cover up to 37 acres per hour with consistent depth and optimal seedbed preparation, ensuring even operation through all soil conditions with its advanced Level-Lift™ frame and TruPosition™ standards.
Specifications
Manufacturer
John Deere
Model
2330 (3-Section, 33 ft, 9 in)
Year
2026
Category
Tiller Implements
Subcategory
Mulch Finisher
Operating Speed
6-10 mph
Horsepower Required
10-14 hp/ft
Rolling Basket Harrow Option 1 - Bearings
Dura-Flex, self-aligning and greaseable
Rolling Basket Harrow Option 1 - Adjustments
Angle and aggressiveness
Rolling Basket Harrow Option 1
4-bar spike with single flat-bar rolling basket
Rolling Basket Harrow Option 2
4-bar spike with single, round-bar rolling basket
Rolling Basket Harrow Option 2 - Bearings
Dura-Flex, self-aligning and greaseable
Rolling Basket Harrow Option 4
3-bar coil with round-bar rolling basket
Rolling Basket Harrow Option 3
3-bar coil with flat-bar rolling basket
Spike Tooth Harrow Option 1 - Angle
15-45 degree (angle)
Rolling Basket Harrow Option 2 - Adjustments
Angle and aggressiveness
Coil Tine Harrow Option 1 - Adjustments
Depth, pitch, and angle
Rolling Basket Harrow Option 3 - Bearings
Dura-Flex, self-aligning and greaseable
Spike Tooth Harrow Option 1
Adjustable 6-bar spike-tooth
Rolling Basket Harrow Option 3 - Adjustments
Angle and aggressiveness
Coil Tine Harrow Option 1 - Angle
15-60 degree (angle)
Coil Tine Harrow Option 1
Adjustable 5-bar coil-tine
Rolling Basket Harrow Option 4 - Adjustments
Angle and aggressiveness
Rolling Basket Harrow Option 4 - Bearings
Dura-Flex, self-aligning and greaseable
Tongue Weight Rating
1500.0 lb
Hydraulic Hoses And Couplers
One set
Number Of Ranks
5
Date Collected
2025-10-22
Type of Scrapers
Combination
Gang Angle
8.0 degree (angle)
Blade Concavity
Low
Type Of Spool
Steel fabricated
Depth Adjustment - Base Equipment
TruSet in-cab depth/pressure control and single-point depth control
Type
Flex - 3-section
3-Section
IF320/70R15 tires (four)
Type
Mechanical stabilizer wheels and tires available on 3-section and 5-section
Working Widths - 3-Section
10.29 m 33.75 ft
Standard Spacing
9 in
Maximum Operating Depth
6.0 in
Rolling Basket Harrow Option 2 - Spike/Tine Dimensions
0.75x0.75x12 in
Rolling Basket Harrow Option 2 - Rank Spacing
12.0 in
Rolling Basket Harrow Option 4 - Spike/Tine
16.0 in
Coil Tine Harrow Option 1 - Tine Spacing
12.5 in
Rolling Basket Harrow Option 4 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 1 - Effective Spacing
3.5 in
Spike Tooth Harrow Option 1 - Spike Dimension
0.75x0.75x12 in
Rolling Basket Harrow Option 1 - Spike/Tine
12.0 in
Rolling Basket Harrow Option 2 - Spike/Tine
12.0 in
Spike Tooth Harrow Option 1 - Spike Spacing
10.5 in
Rolling Basket Harrow Option 4 - Rank Spacing
15.0 in
Rolling Basket Harrow Option 2 - Effective Spacing
3.5 in
Rolling Basket Harrow Option 3 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 3 - Spike/Tine Dimensions
16 in
Coil Tine Harrow Option 1 - Tine Dimensions
16.0 in
Rolling Basket Harrow Option 3 - Effective Spacing
3.0 in
Rolling Basket Harrow Option 3 - Spike/Tine
16.0 in
Rolling Basket Harrow Option 4 - Effective Spacing
3.0 in
Rolling Basket Harrow Option 1 - Rank Spacing
12.0 in
Rolling Basket Harrow Option 2 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 1 - Spike/Tine Dimensions
0.75x0.75x12 in
Coil Tine Harrow Option 1 - Effective Spacing
2.5 in
Rolling Basket Harrow Option 1 - Basket Diameter
14.0 in
Rolling Basket Harrow Option 1 - Bearings Diameter
3.0 in
Rolling Basket Harrow Option 1 - Spike/Tine Spacing
10.5 in
Spike Tooth Harrow Option 1 - Effective Spacing
1.75 in
Rolling Basket Harrow Option 2 - Spike/Tine Spacing
10.5 in
Rolling Basket Harrow Option 3 - Spike/Tine Spacing
9.0 in
Rolling Basket Harrow Option 4 - Spike/Tine Spacing
9.0 in
Coil Tine Harrow Option 1 - Rank Spacing
15.0 in
Rolling Basket Harrow Option 2 - Bearings Diameter
3.0 in
Rolling Basket Harrow Option 3 - Bearings Diameter
3.0 in
Rolling Basket Harrow Option 4 - Spike/Tine Dimensions
16 in
Rolling Basket Harrow Option 4 - Bearings Diameter
3.0 in
Rolling Basket Harrow Option 3 - Rank Spacing
15.0 in
Spike Tooth Harrow Option 1 - Rank Spacing
12.0 in
Underframe Clearance
24.0 in
Fore-And-Aft
134.0 in
Tubing
Centerframe - 3 m 10 ft, in Rank tubes - 10.2x10.2 cm 4x4 in Mainframe fore-aft tubes - 7.6x20.3 cm 3x8 in Wing fore-aft tubes - 7.62x15.2 cm 3x6 in
Blade Size
20x0.197 in
Blade Spacing
7.25 in
Gang Shaft Diameter
1.125 in
Maximum Depth - Even With Sweep
5.0 in
Transport Height (Without Rear Harrow) - 3-Section
5.08 m 16.67 ft
Transport Width (Without Rear Harrow) - 3-Section
4.72 m 14.5 ft
