Description

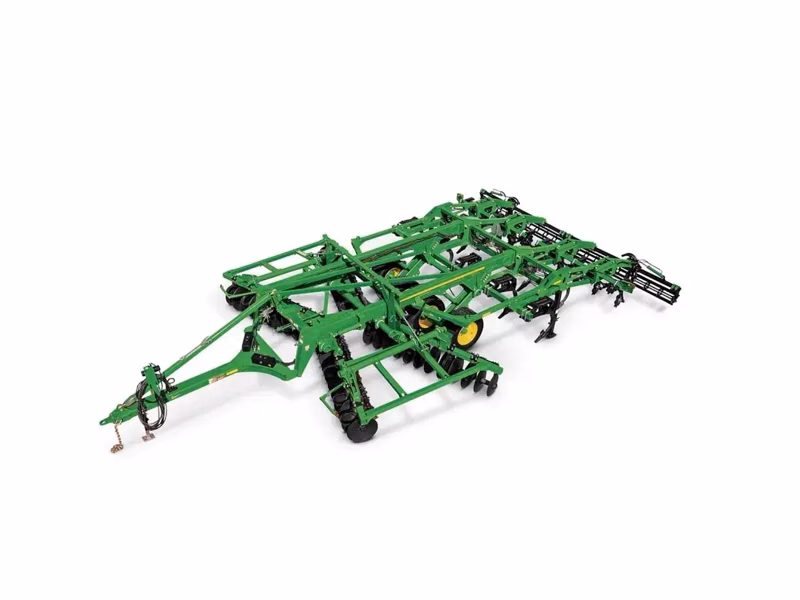

The 2730 Combination Ripper with 9 standards and an 18‑ft folding frame delivers balanced productivity and consistent deep tillage, helping you break up compaction, manage residue, and maintain uniform field conditions across varying acres.
Specifications
Manufacturer
John Deere
Model
2730 - 11 Standards, 22 ft, Folding Frame
Year
2026
Category
Rippers
Subcategory
Rippers
Operating Speed
5-7 mph
Horsepower Required Per Standard
52-64 hp
Trip Force
Cushion-trip standard: 1,859.7 kg 4,100 lb
Bearings
Sealed, maintenance-free
Front Frame Angle (Fixed)
18.0 degree (angle)
Rear Frame Angle
18 degree (angle)
Scraper
Heavy-duty floating combination scraper (base option)
Description
Solid-spherical low concavity closing disks (notched optional)
Base Equipment Blades
Individual dual mount
Type Of Standard
C-spring
Depth Control
TruSet in-cab controls Single-point depth control
Option 1
Single-point crank
Configuration
Disk - Disk - Ripper - Closing Disk - Finishing Attachment
Adjustments
TruSet in-cab controls Mechanical
Option 2
TruSet™ tillage
Option 4
Coil-tine harrow
Option 3
Round-bar rolling basket
Design
Single tube
Fore-Aft Adjustment
Hitch turnbuckle
Wheel Type
Tandem walk-over wheels
Option 1
4 SCVs (depth control, front disk, rear conditioner, optional rolling baskets) at 17,237 kPa 2,500 psi for optimum raise times
Option 2
5 SCVs (depth control, front disk, rear conditioner, wing fold, optional rolling baskets) at 17,237 kPa 2,500 psi for optimum raise times
Transport Width - Option 1
Individual blades: 5.6 m 18.3 ft Disk gangs: 5.7 m 18.7 ft
Working Width - Option 1
22.0 ft
Maximum Operating Depth
16.0 in
Spacing
24 in
Type
Wingless, LaserRip™ II points: 12.7 cm 5 in 17.8 cm 7 in 25.4 cm 10 in
Trip Height
Shear bolt protected above: 33 cm 13 in
Maximum Depth
8.0 in
Base Equipment Blades - Size
18 in
Blade Spacing
Individual: 45.7 cm 18 in Effective - 22.9 cm 9 in Disk gang: 27.9 cm 11 in Effective: 14 cm 5.5 in
Maximum Underframe Clearance
37.5 in
Coverboards
On parabolic standards: 10.2 cm 4 in 15.2 cm 6 in 20.3 cm 8 in
Standard Transport Clearance
13.0 in
