Description

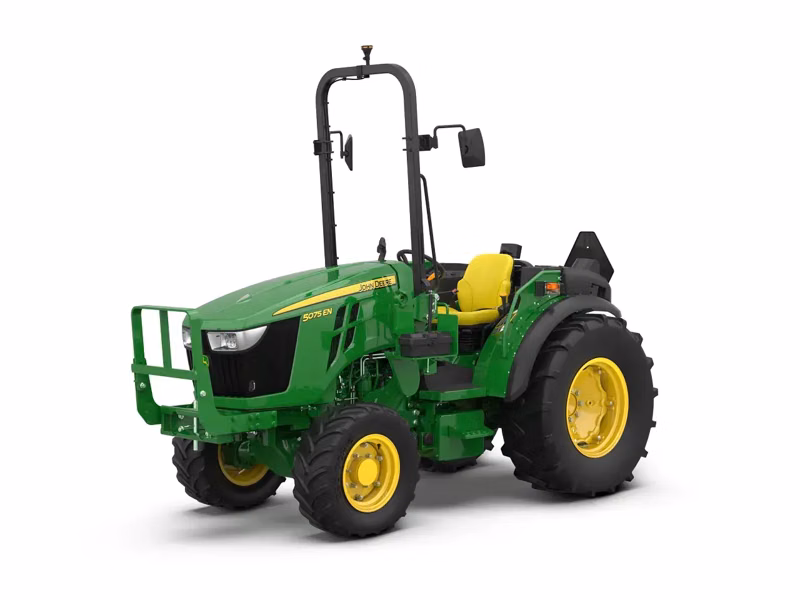

The 5EN Tractor is the perfect fit. Featuring a narrow frame, the 5075EN can glide through tight rows of orchards and vineyards with ease. Integrated John Deere Precision Technology1 such as JDLink™ provide the field management tools you need to effectively monitor and manage your operation.
Specifications
Manufacturer
John Deere
Model
5075EN Open Operator Station
Year
2026
Category
Tractors
Subcategory
High-Value Crop Tractors
Engine Make
John Deere PowerTech™ 3029 EWR
Rated Engine Power
75 PS
Maximum Engine Power
75 PS
Transmission Type
SyncShuttle™ 9F/3R; Optional: PowrReverser™ 12F/12R
Rear Hitch Category (SAE Designation)
Category 2; convertible to 1
Pump Rated Output
68.8 L/min (18.2 gpm)
Engagement Method
SyncShuttle™: Mechanical (lever); PowrReverser™: Electrohydraulic
Sensing Type
Top link
Draft Control Sensing
Mechanical
Maximum Vertical Load
Road/field use (short position): 1120 kg (2470 lb); Field use (fully extended): 760 kg (1675 lb)
Front Axle Type
Two-Wheel Drive (2WD); Optional: Mechanical Front Wheel Drive (MFWD)
Rear Axle Type
Flange
Differential Controls
Mechanical (pedal)
Final Drive
Planetary
Primary Brakes
Hydraulic wet disc
ROPS Type
Foldable, 2-post
Gearshift Location
Floor, on the side
Seat Suspension
Mechanical
Primary Display
Simple automotive-style instrument cluster
Fuel Tank Capacity
19 gal
Country of Manufacture
Sub assembly in Pune, India, Final assembly in Augusta, GA
Date Collected
2023-Jan-06
Engine Make
John Deere PowerTech™ 3029 EWR
Emissions Certifications
Final Tier 4
Aspiration
Turbocharged
Cylinder Liners
Wet sleeved
Aftertreatment Type
DOC/EGR
Rated Engine Power
75 PS
Maximum Engine Power
75 PS
Maximum Engine Torque
250 Nm / 184 lb-ft
Transmission Type
SyncShuttle™ 9F/3R; Optional: PowrReverser™ 12F/12R
Creeper
Kit available for SyncShuttle™ 9F/3R transmission
Reverser
SyncShuttle™: No; PowrReverser™: Yes
Clutch
SyncShuttle™: Dry; PowrReverser™: Wet
Rear Tires Size
14.9-28 R1 Bias
Hydraulic System Type
Open Center
Pump Rated Output
68.8 L/min (18.2 gpm)
Available Flow at a Single Rear SCV
43.1 L/min (11.4 gpm)
SCV Control
Mechanical
Alternator Capacity
70 amp
Working Lights
Halogen
Driving Lights
Halogen
PTO Category
SyncShuttle™: Independent 540; PowrReverser™: Independent 540/540E
