Description

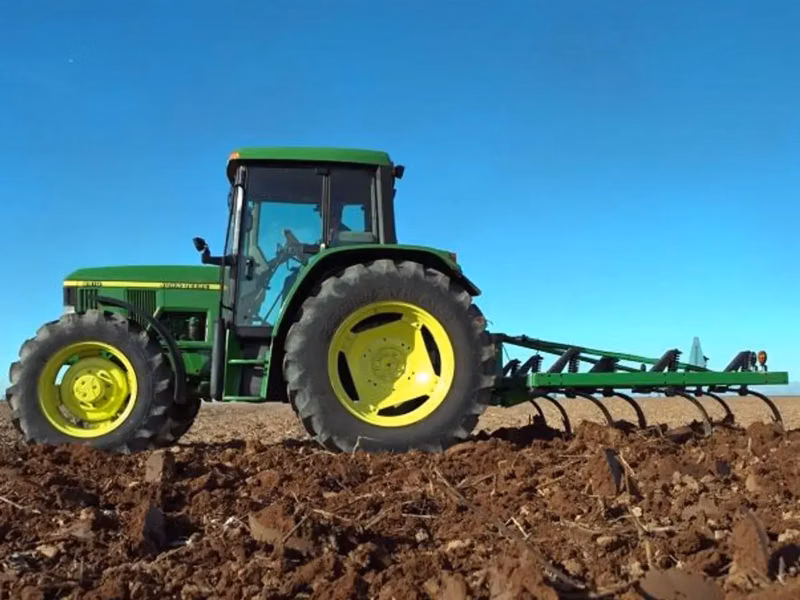

The 16-ft 610 Integral Chisel Plow provides dependable performance with durable construction, consistent depth control, and flexible configurations—helping you cover acres efficiently while maintaining effective residue and soil management.
Specifications
Manufacturer
John Deere
Model
610 - 16 ft
Year
2026
Category
Agricultural Equipment
Subcategory
Chisel Plows And Coulter Chisels
Operating Speed
5 - 7 mph
Horsepower Required
Rigid and spring-reset standards: 14.7 to 24.5 kW/m (6 to 10 hp/ft); Tru-Depth standards: 14.7 to 34.3 kW/m (6 to 14 hp/ft )
Option 2 - Trip Force
550.0 lb
Option 3 - Trip Force
1250.0 lb
Option 1
Tractor 3-point hitch
Option 2
Standard: TruPosition
Option 3
Standard: Tru-Depth
Ground-Engaging Component Choices
Variety of sweeps, shovels, and chisel points
Type
Non-fold (integral)
Stabilizer Wheels - Option 1
Stabilizer wheel frames with 5.90 - 15 4PR implement tires (optional on 2.4-m [8-ft] base models, standard on 4.9-m [16-ft] base models)
Standard Spacings
12 in
Maximum Operating Depth
12 in (30.5 cm)
Rigid Frame - Option 1
16 ft
Option 3 - Spec
2x1.25x32 in
Option 1 - Maximum Operating Depth
8.0 in
Option 1 - Spacing
12, 16 in
Option 3 - Underframe Clearance
32.0 in
Option 3 - Trip Height
11.0 in
Option 3 - Spacing
12, 16 in
Option 2 - Underframe Clearance
28.0 in
Option 1 - Spec
1.5x2x28 in
Option 2 - Spec
1.25x2x28 in
Option 1 - Underframe Clearance
28.0 in
Option 2 - Trip Height
10.0 in
Option 2 - Spacing
12 in
Option 3 - Maximum Operating Depth
12.0 in
Option 2 - Maximum Operating Depth
12.0 in
Option 1 - Spike/Coil Dimensions
12 in
Option 1 - Rank Spacing
12.0 in
Fore-And-Aft
72.0 in
Tubing
High strength, box beam steel cross members: 10.2x10.2 cm (4x4 in ); Steel end tubes, welded construction: 5.1x10.2 cm (2x4 in )
