Description

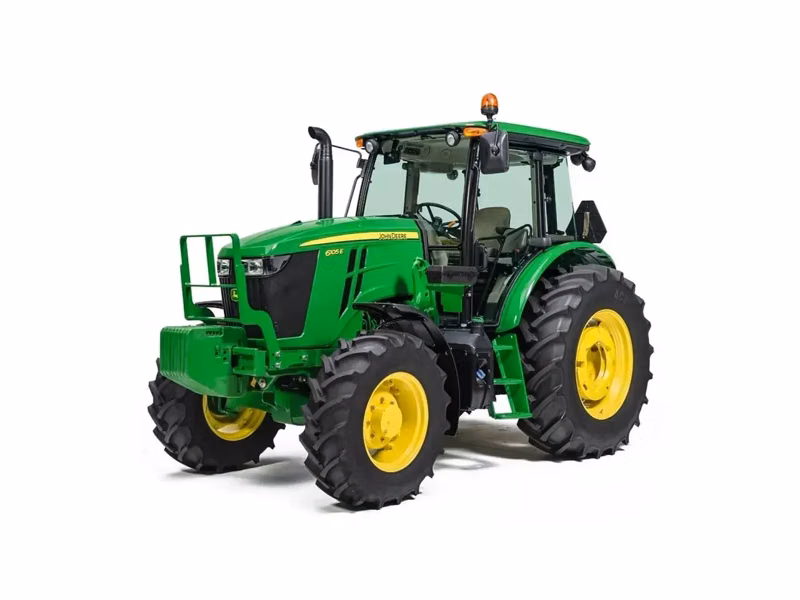

The John Deere 6105E Cab Tractor offers powerful performance and versatility with its robust engine, user-friendly controls, and efficient design, making it an ideal choice for agricultural professionals seeking productivity and reliability in a compact package.
Specifications
Manufacturer
John Deere
Model
6105E Cab
Year
2026
Category
Tractors
Subcategory
Utility Tractors
Engine hp
108 Max / 105 Rated1
Engine Make
John Deere
Engine Model
PowerTech™ PWL
Engine Family
HJDXL04.5315
Emissions Certifications
Final Tier 4
Displacement
4.5 L
Aspiration
Turbocharged, wastegate turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Number of Cylinders
4
Cylinder Liners
Wet-sleeve
Aftertreatment Type
Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Rated Engine Speed
2200 rpm
Rated Engine Power
106 PS
Maximum Engine Speed
2300 rpm
Maximum Engine Power
108 PS
Maximum Engine Torque
432 Nm 318 lb-ft
Constant Power Range
1800-2200
Power Bulge
3 %
Bore and Stroke
4.2 x 5 in
Compression Ratio
16.8:1
Lubrication
Pressure lubrication
Cooling System Type
Liquid
Fuel Type
Ultra-low sulfur diesel
Air Cleaner Type
PowertCore Air Filter with pre cleaning
Torque Rise
25 %
Engine Make
John Deere
Engine Model
PowerTech™ PWL
Engine Family
HJDXL04.5315
Displacement
4.5 L
Rated Engine Power
106 PS
Maximum Engine Power
108 PS
Transmission Type
Standard: John Deere 12F/12R PowrReverser transmission: 30 km/h 19 mph *Optional: John Deere 12F/12R PowrReverser transmission with creeper: 30 km/h *John Deere 24F/12R PowrReverser Transmission: 40 km/h 25 mph
Rear Hitch Category (SAE Designation)
Category 2
Pump Rated Output
36.5 cc pump: 75.7 L/min 20 gpm
Base Machine Weight
10240 lb
Wheel or Track Configuration
Wheel
Drive Type
2WD & MFWD
Rated PTO Power
89 PS
PTO Clutch
Multi-disk
Number of Splines
1000: 21 / 540: 6
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point
Standard: 2,500 kg 5,500 lb Optional: 3,318 kg 7,300 lb
Sensing Type
Mechanical
Drawbar Category
Category 2
Maximum Vertical Load
Standard: Category 2 1000-1250 kg 2205-2756 lb Optional: Category 2 heavy duty: 1200-1900 kg 2645-4189 lb
Front Axle Type
Standard: MFWD Optional: Two-wheel drive (2WD)
Front Axle Differential Lock
MFWD: limited slip
Rear Axle Type
Flange
Rear Differential Lock
Full-locking mechanical
Final Drive
Inboard Planetary
Steering Type
Hydrostatic power steering
Primary Brakes
Oil-cooled, mechanical actuated wet disc
Parking Brake
Mechanical brake pedal lock (detent)
ROPS Type
Rollover protective structure, OOS
Gearshift Location
Console
Seat Suspension
Standard: Mechanical suspension Optional: Air suspension
Degree of Seat Swivel, Left Hand
15 degree (angle)
Degree of Seat Swivel, Right Hand
15 degree (angle)
Primary Display
Digital dash display with liquid crystal displays (LCDs)
Radio
Field Kit
Guidance
SF-RTK
Receiver
Universal StarFire™ 7500
Connectivity
JDLink™ Modem
Fuel Tank Capacity
44.4 gal
Diesel Exhaust Fluid (DEF) Tank Capacity
2.9 gal
Cooling System Capacity
5 gal
Transmission - Hydraulic System
15.3 gal
Crankcase Oil Volume
4 gal
Country of Manufacture
Mexico
Date Collected
05/19/2026
Maximum Ballast Level
14250 lb
Maximum Permissible Weight
17636 lb
Transmission Type
Standard: John Deere 12F/12R PowrReverser transmission: 30 km/h 19 mph *Optional: John Deere 12F/12R PowrReverser transmission with creeper: 30 km/h *John Deere 24F/12R PowrReverser Transmission: 40 km/h 25 mph
Maximum Speed Forward
40 km/h 25 mph
Minimum Speed Forward
1.5 km/h 0.9 mph
Reverser
Left hand
Clutch
Wet
Front Tires Size
380/85R28
Rear Tires Size
460/85R42
Hydraulic System Type
Open-center Gear driven
Pump Rated Output
36.5 cc pump: 75.7 L/min 20 gpm
Maximum Operating Pressure
2973 psi
Number of Rear Selective Control Valves (SCVs)
Standard: Two ISO couplers Optional: Three ISO couplers
Available Flow at a Single Rear SCV
75.7 L/min 20 gpm
SCV Control
Mechanical
Battery Voltage
12 V
Electrical System Voltage
12 V
Battery Cold Cranking Amps
925 CCA
Alternator Capacity
90 A
PTO Category
35 mm (1.375 in ) 540 rpm/1000 rpm reversible shaft
Cab Glass Area
53.9 sq ft
Overall Height
108.5 in
Transport Height
108.5 in
Overall Width
96.5 in
Overall Length
170.9 in
Front Axle Ground Clearance
17.4 in
Drawbar Ground Clearance
20.3 in
