Description

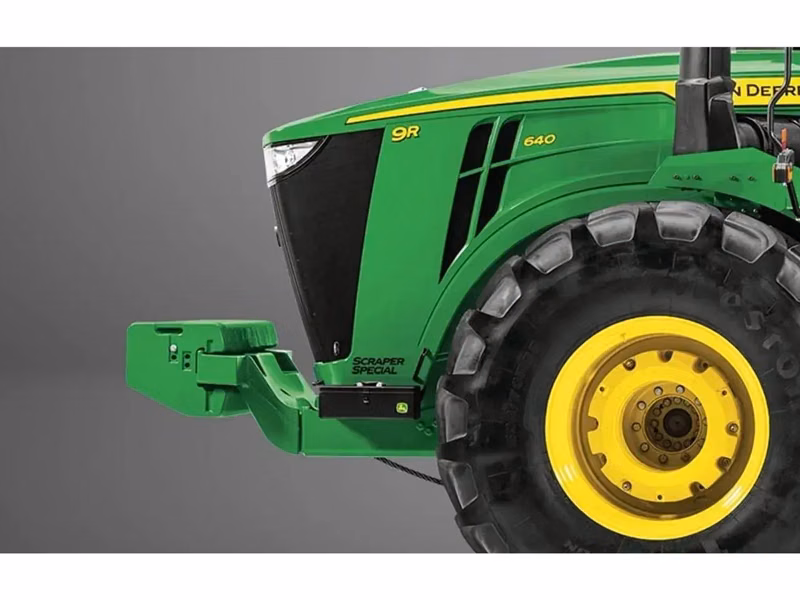

When pulling high-capacity scraper systems, the 9R 640 Scraper Special supports consistent load control and machine stability, enabling efficient movement and repeatable cycle performance.
Specifications
Manufacturer
John Deere
Model
9R 640 Scraper Special
Year
2026
Category
Scrapers
Subcategory
Scraper Systems
Engine hp
691 Max / 640 Rated1
Engine Make
John Deere
Engine Model
JD14
Engine Family
VJDXL13.5334
Emissions Certifications
Final Tier 4 (FT4)
Displacement
13.6 L
Aspiration
Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
Number of Cylinders
6
Cylinder Liners
Wet-sleeve
Aftertreatment Type
Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)
Rated Engine Speed
2100 rpm
Rated Engine Power
640 PS
Maximum Engine Power
691 PS
Maximum Engine Torque
At 1550 rpm: 2954 Nm / 2179 lb-ft
Power Bulge
8 %
Fuel Type
Diesel
Alternative Fuel Type
B30 Diesel Compatible
Torque Rise
38 %
Engine Make
John Deere
Engine Model
JD14
Engine Family
VJDXL13.5334
Displacement
13.6 L
Rated Engine Power
640 PS
Maximum Engine Power
691 PS
Transmission Type
John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™
Pump Rated Output
208 L/min / 55 gpm (Standard), 416 L/min / 110 gpm (Optional)
Base Machine Weight
45122 lb
Wheel or Track Configuration
Wheel
Drive Type
4WD
Drawbar Category
Standard: Drawbar support for short scraper drawbars; Optional: Drawbar support for long scraper drawbars
Front Axle Differential Lock
Full-locking electrohydraulic
Rear Differential Lock
Full-locking electrohydraulic
Final Drive
Inboard planetary with double-reduction axle
Steering Type
Standard: Hydraulic power steering; Optional: ActiveCommand Steering (ACS™)
Seat Suspension
Air seat / ActiveSeat™ II (Optional)
Degree of Seat Swivel, Left Hand
25 degree (angle)
Degree of Seat Swivel, Right Hand
40 degree (angle)
Radio
AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna (Standard); Touchscreen radio (Optional)
Connectivity
Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
Remote Diagnostics
Available with activated JDLink hardware and activations
Fuel Tank Capacity
400 gal
Diesel Exhaust Fluid (DEF) Tank Capacity
31.7 gal
Cooling System Capacity
14.9 gal
Transmission - Hydraulic System
59 gal
Crankcase Oil Volume
16.9 gal
Country of Manufacture
USA
Date Collected
2025_04_03T00:00:00.0000001
Maximum Ballast Level
54000 lb
Transmission Type
John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™
Maximum Speed Forward
25 mph / 40 km/h
Hydraulic System Type
Closed-center, pressure-and-flow compensated
Pump Rated Output
208 L/min / 55 gpm (Standard), 416 L/min / 110 gpm (Optional)
Number of Rear Selective Control Valves (SCVs)
Standard: four 1.3-cm (1/2-in ) ISO couplers; Optional: four 1.9-cm (3/4-in ) deluxe; Optional: six 1.9-cm (3/4-in ) deluxe
Available Flow at a Single Rear SCV
1.3-cm (1/2-in ) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in ) couplers: 170 L/min (45 gpm)
SCV Control
Electronic
Battery Voltage
12 V
Battery Cold Cranking Amps
2850 CCA
Alternator Capacity
250 amp (Standard), 330 amp (Optional)
Working Lights
18-24 LED
Driving Lights
LED
Front Axle Type
Diameter: 120 x 3048 mm / 4.72 x 120 in
Rear Axle Type
Diameter: 120 x 3048 mm / 4.72 x 120 in
Primary Display
G5ᴾˡᵘˢ CommandCenter™: 32.5 cm / 12.8 in
Inner Cab Volume
115.0 cu ft
Cab Glass Area
71.47 sq ft
Wheelbase
154.0 in
Overall Length
312.8 in
Drawbar Ground Clearance
20.7 in
