Description

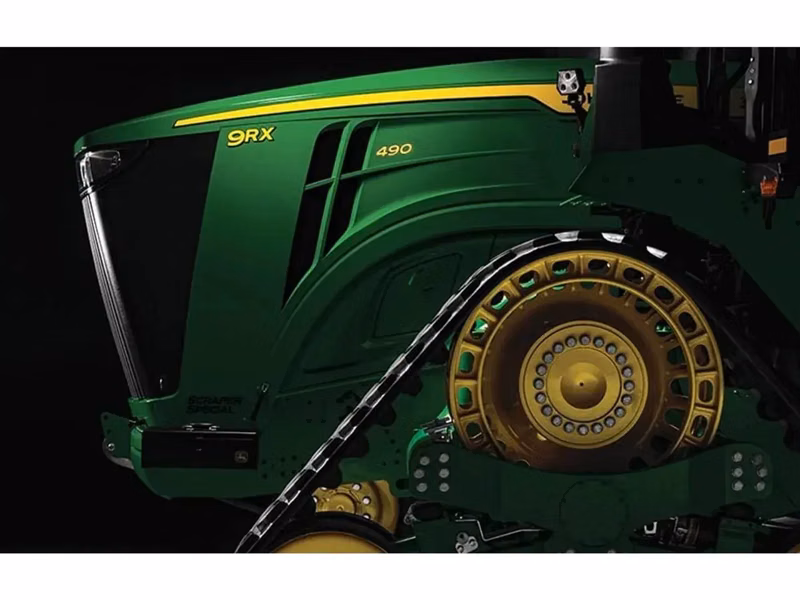

When hauling material with scraper systems, the 9RX 490 Scraper Special provides four-track stability and hydraulic performance to support consistent loads and controlled haul cycles.
Specifications
Manufacturer
John Deere
Model
9RX 490 Scraper Special
Year
2026
Category
Scrapers
Subcategory
Scraper Systems
Engine hp
539 Max / 490 Rated1
Engine Make
John Deere
Engine Model
JD14
Engine Family
VJDXL13.5334
Emissions Certifications
Final Tier 4 (FT4)
Displacement
13.6 L
Aspiration
Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
Number of Cylinders
6
Cylinder Liners
Wet-sleeve
Aftertreatment Type
Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)
Rated Engine Speed
2100 rpm
Rated Engine Power
490 PS
Maximum Engine Power
539 PS
Maximum Engine Torque
At 1550 rpm: 2262 Nm / 1668 lb-ft
Power Bulge
10 %
Fuel Type
Diesel
Alternative Fuel Type
B30 Diesel Compatible
Torque Rise
38 %
Engine Make
John Deere
Engine Model
JD14
Engine Family
VJDXL13.5334
Displacement
13.6 L
Rated Engine Power
490 PS
Maximum Engine Power
539 PS
Transmission Type
John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™
Pump Rated Output
416 L/min (110 gpm)
Base Machine Weight
56714 lb
Wheel or Track Configuration
4-Track
Drive Type
4WD
Drawbar Category
Drawbar support for short scraper drawbars
Front Axle Differential Lock
Full-locking electrohydraulic
Rear Differential Lock
Full-locking electrohydraulic
Final Drive
Bull gear and double idler with floating pinion
Steering Type
Standard: Hydraulic power steering; Optional: ActiveCommand Steering (ACS™)
Seat Suspension
Air seat
Degree of Seat Swivel, Left Hand
25 degree (angle)
Degree of Seat Swivel, Right Hand
40 degree (angle)
Radio
Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio
Connectivity
Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
Remote Diagnostics
Available with activated JDLink hardware and activations
Fuel Tank Capacity
350 gal
Diesel Exhaust Fluid (DEF) Tank Capacity
31.7 gal
Cooling System Capacity
14.9 gal
Transmission - Hydraulic System
59 gal
Crankcase Oil Volume
16.9 gal
Country of Manufacture
USA
Date Collected
2025_04_03T00:00:00.0000006
Maximum Ballast Level
60000 lb
Transmission Type
John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™
Maximum Speed Forward
25 mph / 40 km/h
Track Drive Type
Camso Scraper 6500 (MICHELIN BIBTRACK 250 SCR) Positive Drive
Track Width
762 mm / 30 in
Number Of Mid Rollers
Two
Hydraulic System Type
Closed-center, pressure-and-flow compensated
Pump Rated Output
416 L/min (110 gpm)
Number of Rear Selective Control Valves (SCVs)
Standard: four 1.9-cm (3/4-in ) deluxe; Optional: six 1.9-cm (3/4-in ) deluxe
Available Flow at a Single Rear SCV
1.9-cm (3/4-in ) couplers: 170 L/min (45 gpm)
SCV Control
Electronic
Battery Voltage
12 V
Battery Cold Cranking Amps
2850 CCA
Alternator Capacity
250 amp (standard), 330 amp (optional)
Working Lights
18-24 LED
Driving Lights
LED
Front Axle Type
Diameter: 120 x 3048 mm / 4.72 x 120 in
Primary Display
G5ᴾˡᵘˢ CommandCenter™: 32.5 cm / 12.8 in
Inner Cab Volume
115.0 cu ft
Cab Glass Area
71.47 sq ft
Wheelbase
162.5 in
Overall Length
327.1 in
Drawbar Ground Clearance
12.2 in
