Description

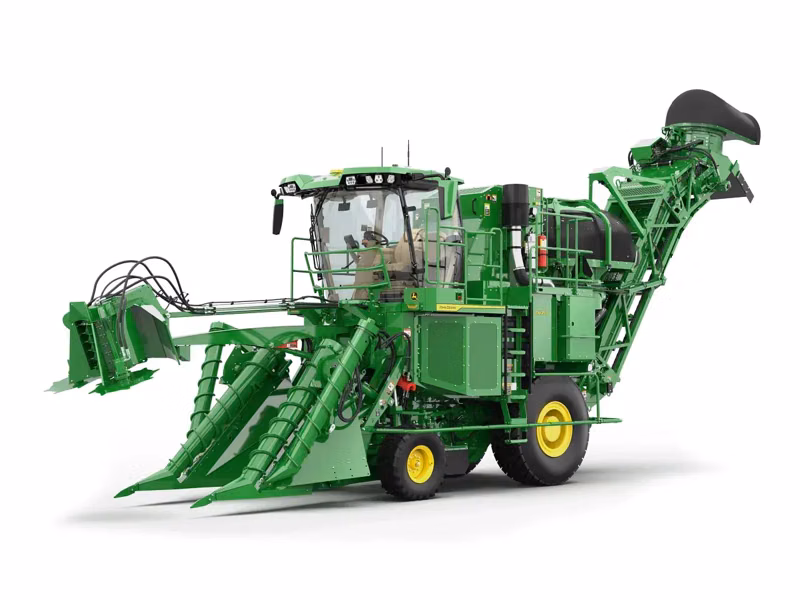

The CH750 Sugar Cane Harvester offers powerful reliability with efficient hydraulics, a self-cleaning cooling package, and cutting-edge technology like the Harvest Monitor™ with SmartClean™ system for optimized performance and cost-effective decision-making in harvesting and farming practices.
Specifications
Manufacturer
John Deere
Model
CH750 Wheel
Year
2026
Category
Harvesters
Subcategory
Sugar Cane Harvester
Standard Power At 2100 RPM
342.0 cv
Engine Make
John Deere PowerTech Plus 9.0 L
Crop Divider Float Control
Optional automatic float control
Fuel Capacity
160.0 gal
Cooling System Type
Automatically controlled, hydraulically driven reversing cooling fan
Blade Configuration - Option 1
Eight blade (four per drum), differential
Blade Configuration - Option 2
Ten blade (five per drum), DuraSync
Drive
Hydraulic, reversible drive
Blade Configuration - Option 3
Eight blade (four per drum), DuraSync
Bearing Location
External
Elevator Swing
Hydraulic controlled, trunnion cylinders
Chain Adjustment
Grease cylinder
Shock Absorption
Nitrogen accumulator
Total Swing Angle
170.0 degree (angle)
Sprocket Drive
Hydraulic motor driven, reversible
Hydraulic Height Adjustment
Optional on front
Type
Standard - three paddle closed; Optional - four bar open
Number Of Blades Per Disc
5
Legs
Bolt-on wear plates, optional breakaway legs
Fan Drive
Hydrostatic, variable speed
Number Of Fan Blades
4
Wear Ring
Standard - Abrasive resistant steel; Optional - Duraliner (Vidaplate) steel
Hood Rotation
Hydraulic controlled, 360 degree (angle)
Front Tipping Cab
Manual hydraulic pump operation
GPS Guidance
AutoTrac™ ready standard
Radio
Standard premium with Bluetooth®
Air Conditioning
Pressurized cab with air conditioning and heating
Seat
Air suspension with swivel
Connectivity
JDLink™ Ready
Shredder Topper
Optional 38 blade residue management shredder
Whole Topper
Standard eight blade single cut
Date Collected
2026-05-01
Parking
Multiple wet disc, spring applied hydraulic released
Side Knives
Optional side knives include hydraulic height control
Scrolls
Outside and inside scrolls standard
Inside Scrolls Approach Angle
46.0 degree (angle)
Tilt Control
Mechanical tilt control standard, optional hydraulic control
Factory Hard Surfacing
Skirts, slip-on shoes, toes
Bin Flap Position
Hydraulic controlled
Hydraulic Oil Capacity
106.0 gal
Service
Topper boom, service compartments
Cab
Automatic ingress/egress, interior lighting
Optional
Eight lights on cab including four LED Four auxiliary LED lights and one topper boom LED light
Number Of Rollers
10
Machine Weight (May Vary With Options)
46200.0 lb
Standard Tires - Rear
23.5 by 25 (20-ply) industrial tire with agricultural lug tread pattern
Optional Tires - Front
360/70R17.5 AT (Radial)
Standard Tires - Front
360/70R17.5 AT (Radial)
Optional Tires - Rear
23.5R25 XTLA (Radial) industrial tire with loader tread pattern
Tread Width - Rear
6.17 ft
Tread Width - Front
6.83 ft
Wheel Machine Top Speed (Dependent on Tire/Hydraulic System Option)
0-5.6 mph
Type
Two hydrostatic pumps providing variable speed
Optional Power at 1700 RPM
405.0 cv
Optional Power at 1900 RPM
380.0 cv
Standard Power At 2100 RPM
342.0 cv
Aspiration
Turbocharger with air-to-air aftercooling
Emission Certification
Available Tier 3 and Tier 4 to meet destination country regulations
Engine Make
John Deere PowerTech Plus 9.0 L
Cylinders
Inline six, wet sleeves
Alternator
12.0 V
Displacement
9.0 L
Engine Speeds - Auto Field Cruise
Engine speed adjusts to load automatically between 2,000 and 2,210 rpm
Engine Speeds - Low Idle
850.0 rpm
Standard Power At 2000 RPM
355.0 cv
Engine Speeds - Full Throttle
2210.0 rpm
Engine Speeds - Field Cruise
Manually adjustable from 1,900 to 2,200 rpm
Injection Pump
Electronically controlled
Standard Disc Diameter (With Hard Surfacing)
24.0 in
Fan Diameter
5.0 ft
Maximum Whole Topper Reach
17.0 ft
Drum Center Distance
15.0 in
Blade Width
3.74 in
Width
34.2 in
Optional Elevator Extension
12 / 24 in
Standard Drive
Pump common with chopper, hydrostatic, reversible; available with engine option 337 hp (251.3 kW)
Center Distance
24.8 in
Optional Drive
Includes high efficiency hydraulics and independent circuits for basecutter and chopper, hydrostatic, reversible; available with engine option 375 hp (279.6 kW)
Optional Disc Diameter (With Hard Surfacing)
22.0 in
Extended Width Whole Topper - Overall
7.75 ft
Extended Width Whole Topper - Compared To On Standard Topper
5.95 ft
