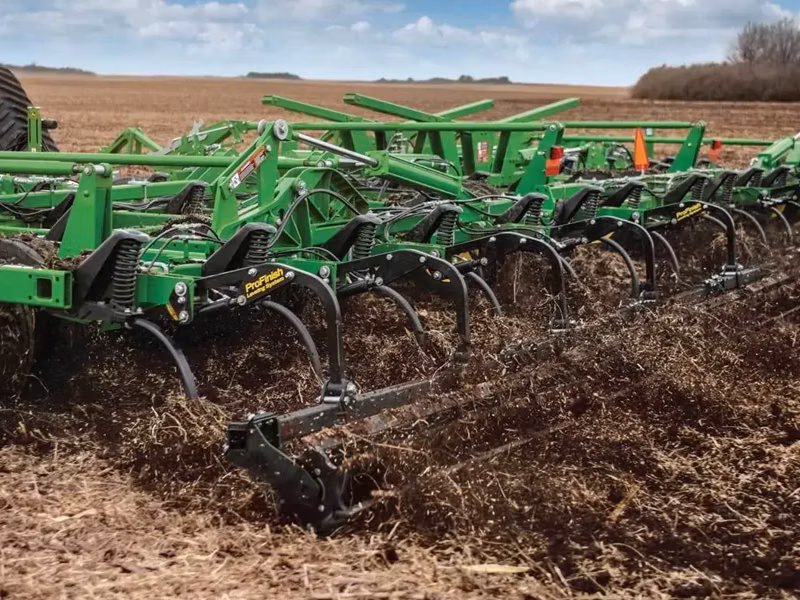

2026 John Deere CP16 Drawn Rigid
Agricultural EquipmentChisel Plows And Coulter Chisels
Description
The CP16 Drawn Rigid Chisel Plow delivers excellent residue management with a wide variety of ground engaging components available to suit your operation's needs.
Specifications
Manufacturer
John Deere
Model
CP16 Drawn Rigid
Year
2026
Category
Agricultural Equipment
Subcategory
Chisel Plows And Coulter Chisels
Operating Speed
5 - 7 mph
Option 2
Hydraulic knife-edge rolling basket
Option 3
TruDepth
Option 1
Coil-tine harrow
Ground-Engaging Component Choices
Variety of sweeps, shovels, and chisel points
Hydraulic Hoses And Couplers
Available as field attachment
Wiring Harness For Transport Lights
Includes Y-harness, allowing both the chisel plow and towed implement lights to work simultaneously
Tongue Weight Rating
100.0 lb
Type
Drawn Rigid
Centerframe Depth Control Wheels And Tires - Option 1
Drawn rigid: Castering front and Walk-Over tandem rear with six IF280/70R15 134D tires
Standard Spacings
12, 16 in
Horsepower Required
14.7 to 24.5 kW/m (6.0 to 10 hp/ft); Rigid and TruPosition standards on spacing: 30.5 cm (12 in )- 11 to 18.35 kW/m (4.5 to 7.5 hp/ft); Rigid and TruPosition standards on spacing of: 40.6 cm (16 in )
Maximum Operating Depth
Rigid, TruPosition: 20.32 cm (8 in ); TruDepth: 30.5 cm (12 in )
Option 3 - Spec
1.25x2x32 in
Option 3 - Underframe Clearance
32.0 in
Option 3 - Trip Height
11.0 in
Option 3 - Spacing
12, 16 in
Option 3 - Maximum Operating Depth
12.0 in
Option 2 - Underframe Clearance
28.0 in
Option 2 - Trip Height
10.0 in
Option 2 - Maximum Operating Depth
12.0 in
Drawn Rigid Fold - Option 1
11 - 16 ft
Fore-And-Aft
134.0 in
Tubing
High strength, box beam steel cross tubes: 10.2x10.2 cm (4x4 in ); End tubes, patented four-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm (2x5 in )
Underframe Clearance
Rigid and TruPosition: 71.1 cm (28 in ); TruDepth: 81.3 cm (32 in )
Hitch Description
Floating tubular T-hitch: on Rigid and 3-section: 15.2x25.4 cm (6x10 in )
Tubing Size
Rectangular box construction: 7.62x12.7 cm (3x5 in )
