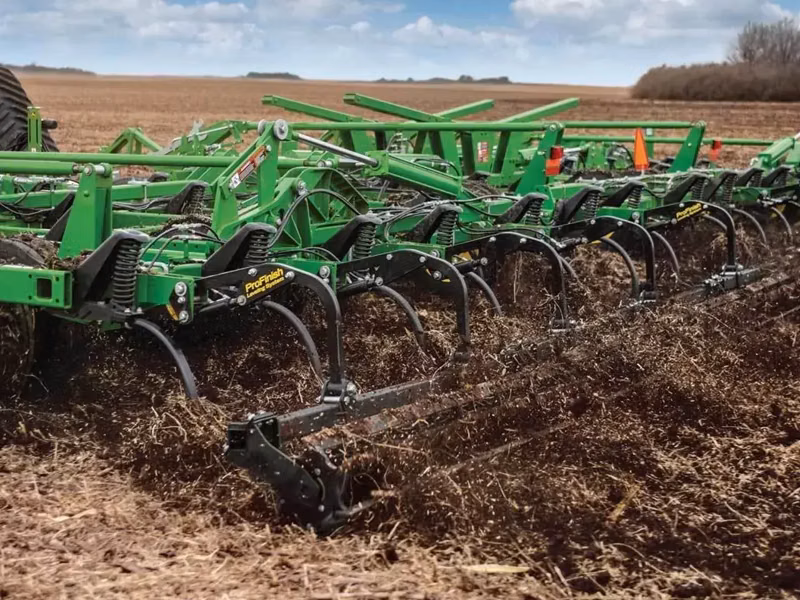

2026 John Deere CP49 - 15-ft Center Frame, 5-Section
Agricultural EquipmentChisel Plows And Coulter Chisels
Description
The CP49 Chisel Plow delivers excellent residue management with a wide variety of ground engaging components available to suit your operation's needs.
Specifications
Manufacturer
John Deere
Model
CP49 - 15-ft Center Frame, 5-Section
Year
2026
Category
Agricultural Equipment
Subcategory
Chisel Plows And Coulter Chisels
Operating Speed
5 - 7 mph
Option 2
Single-point crank-adjust
Option 3
TruDepth
Option 1
TruSet™ Tillage in-cab controls and single-point crank-adjust
Ground-Engaging Component Choices
Variety of sweeps, shovels, and chisel points
Tongue Weight Rating
100.0 lb
Hydraulic Hoses And Couplers
Available as field attachment
Wiring Harness For Transport Lights
Includes Y-harness, allowing both the chisel plow and towed implement lights to work simultaneously
Wing Frame Wheels And Tires - Option 3
5-section: 18.6 m (61 ft); Castering Front (2) 280/70R15 and Walk-over™ Tandem Rear with (4) 320/70R15 on Inner Wing Frames; Castering Front and Walk-over™ Tandem Rear with (6) 280/70R15 on Outer Wing Frames
Centerframe Depth Control Wheels And Tires - Option 5
5-section: 13.4 to 16.8 m (44 to 55 ft); Castering front and Walk-Over™ tandem rear with six IF 320/70R15 144D tires on center frame
Wing Frame Wheels And Tires - Option 2
5-section: 13.4 to 16.8 m (44 to 55 ft); Castering front with two 11L-15FI load range D and Walk-Over™ tandem rear with four 12.5L-15FI load range F on inner wing frames; Castering front and Walk-Over™ tandem rear with six 11L-15FI load range D on outer wing frames
Centerframe Depth Control Wheels And Tires - Option 6
5-section: 18.6 m (61 ft); Castering front and Walk-Over™ tandem rear with two IF 320/70R15 144D Tires on center frames, four 285/70R19.5
Centerframe Depth Control Wheels And Tires - Option 1
Drawn rigid: Castering front and Walk-Over tandem rear with six IF280/70R15 134D tires
Standard Spacings
12, 16 in
Maximum Operating Depth
Rigid, TruPosition: 20.32 cm (8 in ); TruDepth: 30.5 cm (12 in )
Horsepower Required
14.7 to 24.5 kW/m (6.0 to 10 hp/ft); Rigid and TruPosition standards on spacing: 30.5 cm (12 in )- 11 to 18.35 kW/m (4.5 to 7.5 hp/ft); Rigid and TruPosition standards on spacing of: 40.6 cm (16 in )
Option 3 - Spec
1.25x2x32 in
Option 3 - Underframe Clearance
32.0 in
Option 3 - Trip Height
11.0 in
Option 3 - Spacing
12, 16 in
Option 2 - Underframe Clearance
28.0 in
Option 2 - Trip Height
10.0 in
Option 3 - Maximum Operating Depth
12.0 in
Option 2 - Maximum Operating Depth
12.0 in
5-Section - Option 2 Mainframe
15.0 ft
5-Section - Option 2
14.42 - 17.42 ft
Fore-And-Aft
134.0 in
Underframe Clearance
Rigid and TruPosition: 71.1 cm (28 in ); TruDepth: 81.3 cm (32 in )
Tubing
High strength, box beam steel cross tubes: 10.2x10.2 cm (4x4 in ); End tubes, patented four-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm (2x5 in )
Tubing Size
Rectangular box construction: 7.62x12.7 cm (3x5 in )
Hitch Description
Floating tubular T-hitch: on Rigid and 3-section: 15.2x25.4 cm (6x10 in ); On 5-section: 15.2x30.5 cm (6x12 in )
