Description

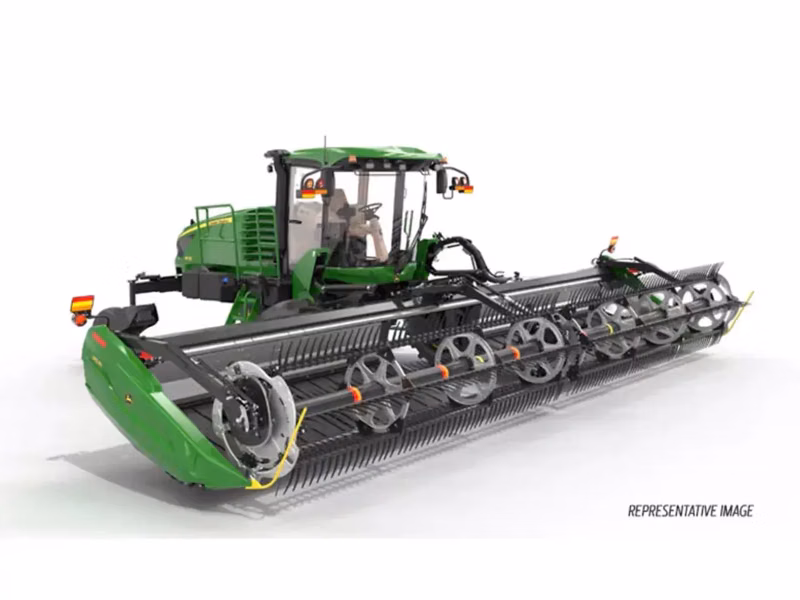

The D1520 - 6.09 m (20 ft) Draper Cutting Platform with Dual Knife Drive and 9 Bat Plastic Reel Manual Deck Shift offers enhanced harvesting efficiency and precision, delivering optimal crop flow and cutting performance for increased productivity in diverse field conditions.
Specifications
Manufacturer
John Deere
Model
D1520 - 9 Bat
Year
2026
Category
Agricultural Equipment
Subcategory
Mowing
Reel Type
Hydraulic
Platform Weight - 9 Bat
4138.0 lb
Operating Speeds
822.0 fpm
Number Of Bats
9
Span
Single reel only
Center Link Extended
12.5 degree (angle)
Center Link Retracted
5.1 degree (angle)
Hold Downs
Sheet metal - adjustment bolt
Guards
Plug free
Knife Drive
Double knife drive
Deck Tilt
Manual
Draper Drive
Hydraulic
Operating Speed
822 fpm
Knife Sections
Fine serration (14 teeth per inch)
Platform Length
20.0 ft
Cut Width (Length)
20.0 ft
Belt Width
50.0 in
Finger Length
11.0 in
Center Tube Diameter (All Reel Sizes)
8.0 in
Finger Spacing (Staggered On Alternate Bats)
4.0 in
Finger Tip Radius (Adjustment Range - Factory Assembled)
30.2-31.5 in
Diameter
65.0 in
Cutterbar Lift Range (Measured At Guard Tip, Center Link Fully Retracted)
49.8 in
Stroke Length
3.0 in
Delivery Opening Height - Center Link Fully Retracted
47.2 in
Delivery Opening Height - Center Link Fully Extended
50.7 in
Delivery Opening Width
69.9-75 in
