Description

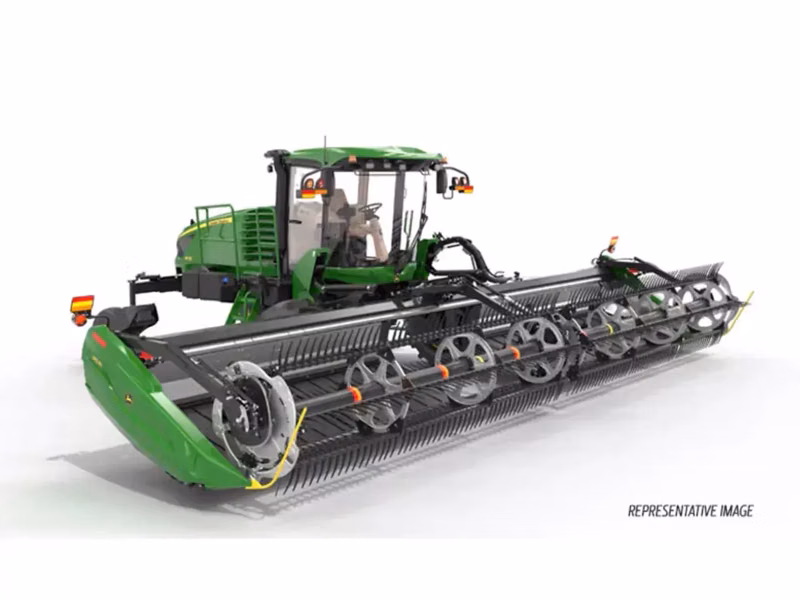

The D1535 Draper Platform is designed to support reliable performance, efficient operation, and operator confidence, combining practical features to help customers work productively across a wide range of conditions.
Specifications
Manufacturer
John Deere
Model
D1535
Year
2026
Category
Agricultural Equipment
Subcategory
Mowing
Reel Type
Hydraulic
Platform Weight - 6 Bat
6266.0 lb
Operating Speeds
822.0 fpm
Number Of Bats
6 only
Span
Double reel only
Center Link Extended
12.5 degree (angle)
Center Link Retracted
5.1 degree (angle)
Hold Downs
Sheet metal - adjustment bolt
Guards
Plug free
Knife Drive
Double knife drive
Deck Tilt
Hydraulic
Draper Drive
Hydraulic
Operating Speed
822 fpm
Knife Sections
Fine serration (9 teeth per inch)
Platform Length
35.0 ft
Cut Width (Length)
35.0 ft
Belt Width
50.0 in
Finger Length
11.0 in
Center Tube Diameter (All Reel Sizes)
8.0 in
Finger Spacing (Staggered On Alternate Bats)
4.0 in
Finger Tip Radius (Adjustment Range - Factory Assembled)
30.2-31.5 in
Diameter
65.0 in
Cutterbar Lift Range (Measured At Guard Tip, Center Link Fully Retracted)
49.8 in
Stroke Length
3.0 in
Delivery Opening Height - Center Link Fully Retracted
47.2 in
Delivery Opening Height - Center Link Fully Extended
50.7 in
Delivery Opening Width
69.9-75 in
