Description

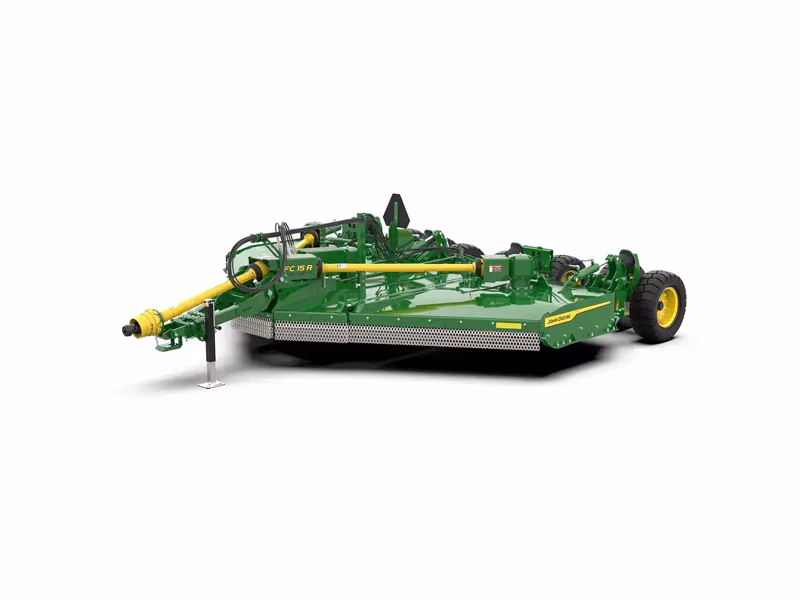

Take on tough terrain with the FC15R HD. This Heavy-Duty model is built to power through thick grass and brush with precision and efficiency. The upgraded suspension is designed for improved durability and increased stability to handle demanding roadside and rough terrain mowing jobs with ease.
Specifications
Manufacturer
John Deere
Model
FC15R Heavy Duty
Year
2026
Category
Batwing Rotary Cutters
Subcategory
Rotary Cutters
Lower Deck Thickness
7.0 gauge
Blade Tip Speed - 540 RPM
264.435704 fps
Blade Tip Speed - 1000 RPM
268.700796 fps
Main Driveline Size
CV ASAE Category 6, splined telescoping profiles
Tractor PTO HP Range
55.0 hp
Outer Horsepower Rating - Continuous
250.0 hp
Transfer Horsepower Rating - Peak
300.0 hp
Center Horsepower Rating - Continuous
250.0 hp
Number
4
Transfer Horsepower Rating - Continuous
250.0 hp
Center Horsepower Rating - Peak
275.0 hp
Outer Horsepower Rating - Peak
275.0 hp
Type
Standard narrow A-frame tongue with Swivel hitch
Connecting Driveline Protection
No-seize, slip-clutch driveline
Connecting Driveline Size
ASAE Category 5, splined telescoping profiles
Jack Stand
Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering
Tractor PTO
540, 1000 rpm
Rear
Double-row chain guard
Front
Double-row chain guard
Approximate Weight
7616.0 lb
Deck Type
Full double deck
Deck Shape
Smooth top deck
Wing Flex
For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle)
Wing Lift
Three SCV connected to the tractor (machine height and wing lift) Independent wing operation
Type - Option 1
5-bolt, 16 PR Heavy-Duty Forklift Tires 736 x 282 x 381 mm (29 x 11 x 15 in)
Suspension
Poly spring suspension
Wing-Leveling Adjustment
Adjustable threaded clevis on wing lift cylinders
Side Skirt Thickness
0.24 in
Upper Deck Thickness
0.12 in
Transport Width (At Wing Wheels)
8.0 ft
Cutting Width
15.0 ft
Cutting Capacity (Diameter)
4.0 in
Blade Holder Type
Round pan stump jumper for blade carrier protection against obstruction damage: 7 gauge 4.55 mm 0.18 in Blade bar: 2.5 x 12 cm 1 x 4.7 in
Overlap
6.0 in
Thickness
0.5 in
Width
4.0 in
Cutting Chamber Depth
10.0 in
Cutting Height
1-18 in
Overall Length
17.3 ft
Overall Width
5.7 ft
Hinges
Intermittent cast segments with segmented 3.1-cm (1.25-in ) diameter hinge pins
