Description
Powerful, versatile, and comfortable—maximize productivity with precise control and lower total cost of ownership.
Specifications
Manufacturer
John Deere
Model

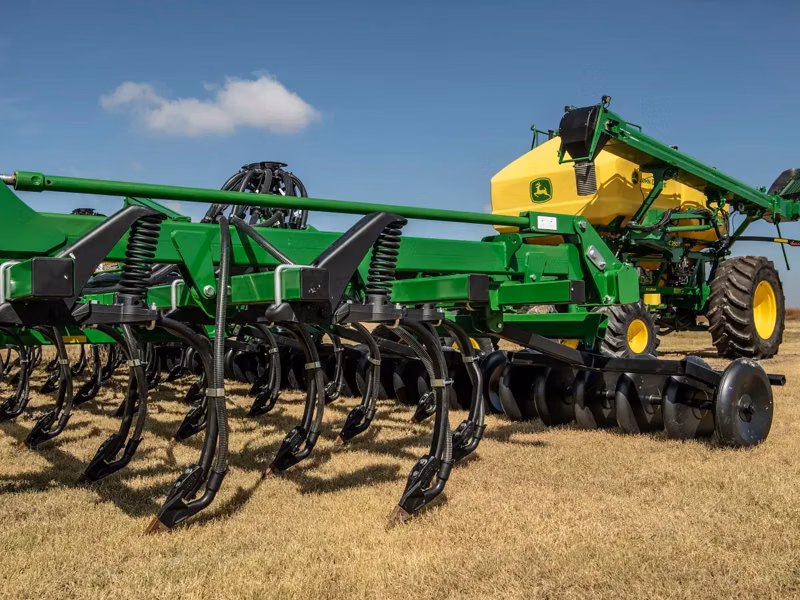

H550 - 5 Section - 50 ft - 12.5-in. Spacing
Year
2026
Category
Seeder Implements
Subcategory
Drills
Hitch Category
Category 4
Mainframe And Wing Flexibility
Diagonal flex
Seeding Tool Depth Control
Adjustable mechanical stop
50 Ft
350.0 hp
Type #1 - Trip Force
550.0 lb-ft
Type #1
Tru-Position™: 51 degree (angle)
Free On Board (F O B )
Valley City, North Dakota
Type
Optional two-bar tine-tooth
Spacing And Width #1 - Weight
27450.0 lb
Number Of Seed Openers
Primary air package configurations for the 1830
Split
81.2 lb
Steel
On 7.5-, 10- or 12.5-in spacing: 7.6 x 53.3 cm (15.7 kg) 3 x 21 in (34.7 lb) On 10- or 12.5-in spacing: 10.2 x 55.9 cm (16.3 kg) 4 x 22 in (35.9 lb)
Semi-Pneumatic
On 7.5-, 10- or 12.5-in spacing: 7.6 x 53.3 cm (16.9 kg) 3 x 21 in (37.2 lb) On 10- or 12.5-in spacing: 10.2 x 53.3, 14 x 53.3 cm (19, 23.4 kg) 4 x 21, 5.5 x 21 in (41.8, 51.6 lb)
Tire Specifications
Tire link
Tractor Hydraulic Circuit Requirements
One selective control for frame lift; one selective control for wing fold and transport wheels
Tractor Hydraulic Pressure Requirement
2200.0 psiPerMin
Minimum SCVs
2
Spacing And Width #1
Spacing: 31.75 cm 12.5 in Width: 15.2 m 50 ft
Cross Members
4 x 4 in
Hitch
2 in
End Tubes
4 x 4 x 0.375 in
Centerframe Width
13.75 ft
Type #1 - Spacing
7.5, 10, or 12.5 in
Underframe Clearance
28.0 in
Type #1 - Dimensions
1.25 x 2 x 28 in
Spacing And Width #1 - Nominal Inner Wing Width (Between Wing-Fold Pivots)
10.1 ft
Nominal Frame Width (Between Wing-Fold Pivots)
13.75 ft
Spacing And Width #1 - Transport Height With Harrow
16.11 ft
Road Clearance With Sweep
16.0 in
Transport Width
20.3, 50.5, or 59.4 ft
Spacing And Width #1 - Transport Height Without Harrow
15.85 ft
Spacing And Width #1 - Working Width
50.0 ft
Spacing And Width #1 - Minimum Temporary Height Reduction With Sweeps
20.0 in
Hitch Pin To Rear Of Transport Wheels
32.67 ft
Fore-Aft Frame Clearance Between Ranks
29.0 in
Length
32.67 ft
Front Of Front Cross Member To Front Of Rear Cross Member (4 Ranks)
7.25 ft
Lateral Frame Clearance, Opener To Opener
30.0 in
