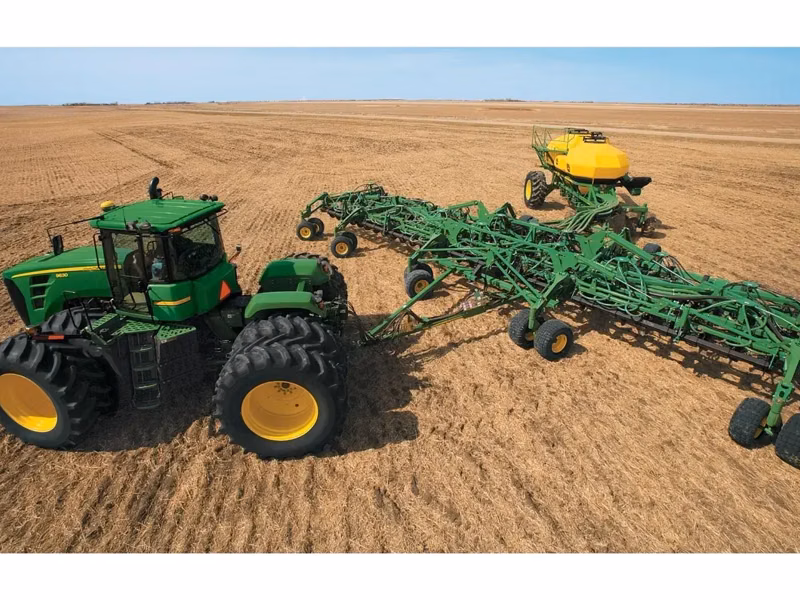

2026 John Deere H550F Separate Fertilizer Placement - 5 Section - 50 ft - 10-in. Spacing
Seeder ImplementsDrills
Description
Proven power and efficiency with premium comfort—work faster, reduce downtime, and lower total cost of ownership.
Specifications
Manufacturer
John Deere
Model
H550F Separate Fertilizer Placement - 5 Section - 50 ft - 10-in. Spacing
Year
2026
Category
Seeder Implements
Subcategory
Drills
Mainframe And Wing Flexibility
Diagonal flex
Seeding Tool Depth Control
Adjustable mechanical stop
Type #1
TruPosition™: 51 degree (angle)
Type #1 - Fertilizer Compatibility
Anhydrous gas, liquid, dry
40 Ft
325.0 hp
60 Ft
475.0 hp
50 Ft
400.0 hp
Free On Board (F O B )
Valley City, North Dakota
Spacing And Width #1 - Weight
37575.0 lb
Number Of Seed Openers
Openers link
Tractor Hydraulic Circuit Requirements
One selective control for frame lift, one selective control for wing fold and transport wheels, and one for SFP rockshaft control
Tractor Hydraulic Pressure Requirement
2500.0 psiPerMin
Minimum SCVs
3
Steel
3x21 (34.7 lb) or 4x22 (35.9 lb) on 25.4-cm (10-in ) spacing
Semi-Pneumatic
3x21 (37.2 lb), 4x21 (41.8 lb), or 5.5x21 (51.6 lb) on 25.4-cm (10-in ) spacing
Tire Specifications
Tire link
Spacing And Width #1
Spacing: 25.4 cm 10 in Width: 15.2 m 50 ft
Cross Members
4 x 4 in
Hitch Category
Category 4: Pin: 50 mm 2 in Category 5: 70 mm 2.75 in
End Tubes
4 x 4 x 0.375 in
Centerframe Width
13.75 ft
Type #1 - Spacing
10 in
Type #1 - Blade Size
18.0 in
Underframe Clearance
28.0 in
Type #1 - Dimensions
1.25 x 2 x 28 in
Spacing And Width #1 - Nominal Inner Wing Width (Between Wing-Fold Pivots)
10.1 ft
Nominal Frame Width (Between Wing-Fold Pivots)
13.75 ft
Spacing And Width #1 - Transport Height With Harrow
16.53 ft
Road Clearance With Sweep
15.0 in
Transport Width
20 ft
Spacing And Width #1 - Working Width
50.0 ft
Spacing And Width #1 - Minimum Temporary Height Reduction With Sweeps
20.0 in
Hitch Pin To Rear Of Transport Wheels
33.2 ft
Fore-Aft Frame Clearance Between Ranks
29.0 in
Front Of Front Cross Member To Front Of Rear Cross Member (4 Ranks)
7.23 ft
Lateral Frame Clearance, Opener To Opener
30.0 in
