Description

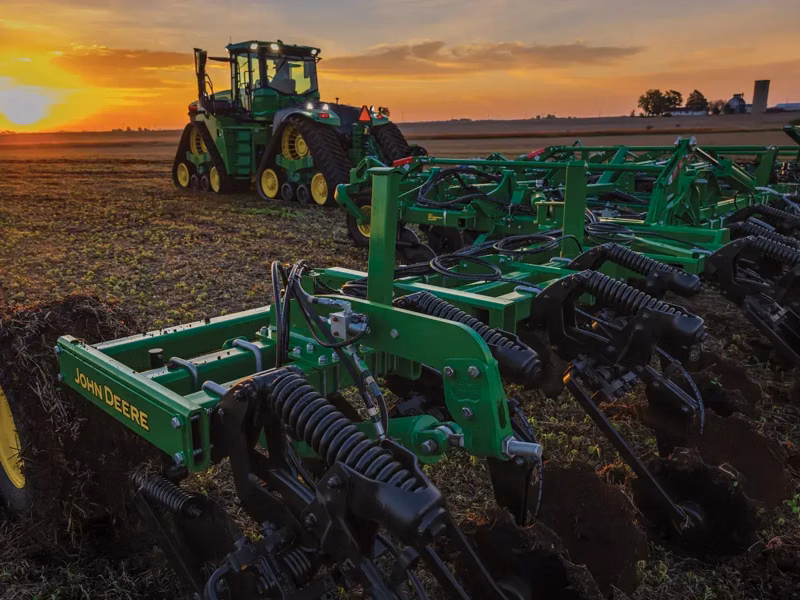

The SA19 Shank Nutrient Applicator is designed to support excellent nutrient placement and high residue flow with tube-through-tube construction and a four rank design, enabling faster working speeds and high uptime.
Specifications
Manufacturer
John Deere
Model
SA19
Year
2026
Category
Agricultural Equipment
Subcategory
Applicators
Fold Type
Five-section fold
Number Of Rows
19
Conventional Machine Weight
26320 lb
Rear Hitch Maximum Gross Vehicle Weight (GVW)
25000.0 lb
Frame Flex - Up
10 degree (angle)
Hitch Link
Category 4 or 5
Frame Flex - Down
15 degree (angle)
Depth Control System
TruSet depth control system and single-point depth control system
Rear Hitch
Fore/aft and side-to-side adjustable drawbar
Maximum Down Pressure
50.0 lbf
Blade Type
Concave notched
Mounting
Independently mounted arms with pin adjustment
Standard Options
Tru-Depth™ conventional
Number Of Standards
19
Standard Trip Force
1250.0 lbf
Standard Options - Conventional Knife Options With Coulters And Closing Disks
Conventional or mole knife
Engine Horsepower Requirement
360 - 520 hp
Selective Control Valves (SCVs) Required
2
Operating Speed
8 - 16 km/h
Coulter Downforce
600.0 lbf
Tire Configuration
Mainframe tires: 320/70R15 145D (six); Inner wing tires: 320/70R15 145D (two), 280/70R15 134D (four); Outer wing tires: 280/70R15 134D (six)
Wheel Mounting
Castering front with walk-over tandem rear
Working Width
47.5 ft
Transport Height
14 ft, 1 in (4.3 m)
Overall Length
32.0 ft
Centerframe Width
12.0 ft
Transport Width
19 ft, 8 in (6 m)
Row Spacing
30 in
Hitch System
Pull type: Floating hitch; Rigid T-hitch - 6 x 12 in (152 x 305 mm)
Trip Height
19.5 in
Disk Blade Diameter
18 x 0.118 in
Side To Side Adjustment Range
8.8 - 17 in
Standard Operating Depth Range
3 - 12 in
Standard Spacing
30.0 in
Standard Trip Height
11.0 in
Fore-And-Aft Clearance
11.17 ft
Underframe Clearance
44.0 in
Blade Spacing
30.0 in
Blade Diameter
22 x 0.177 in
